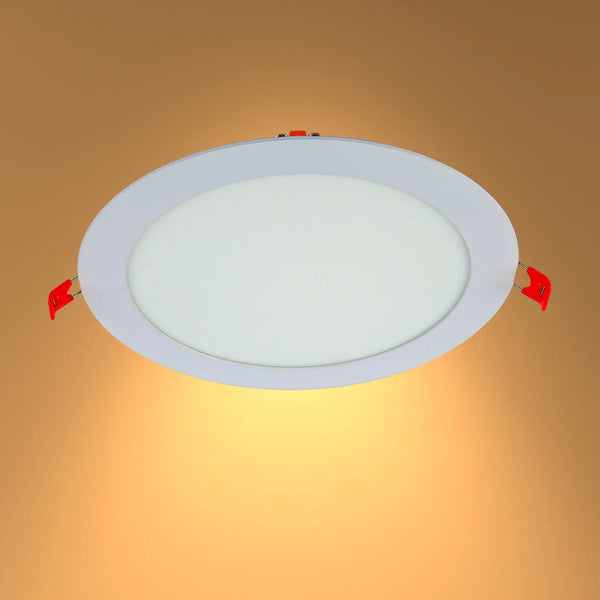

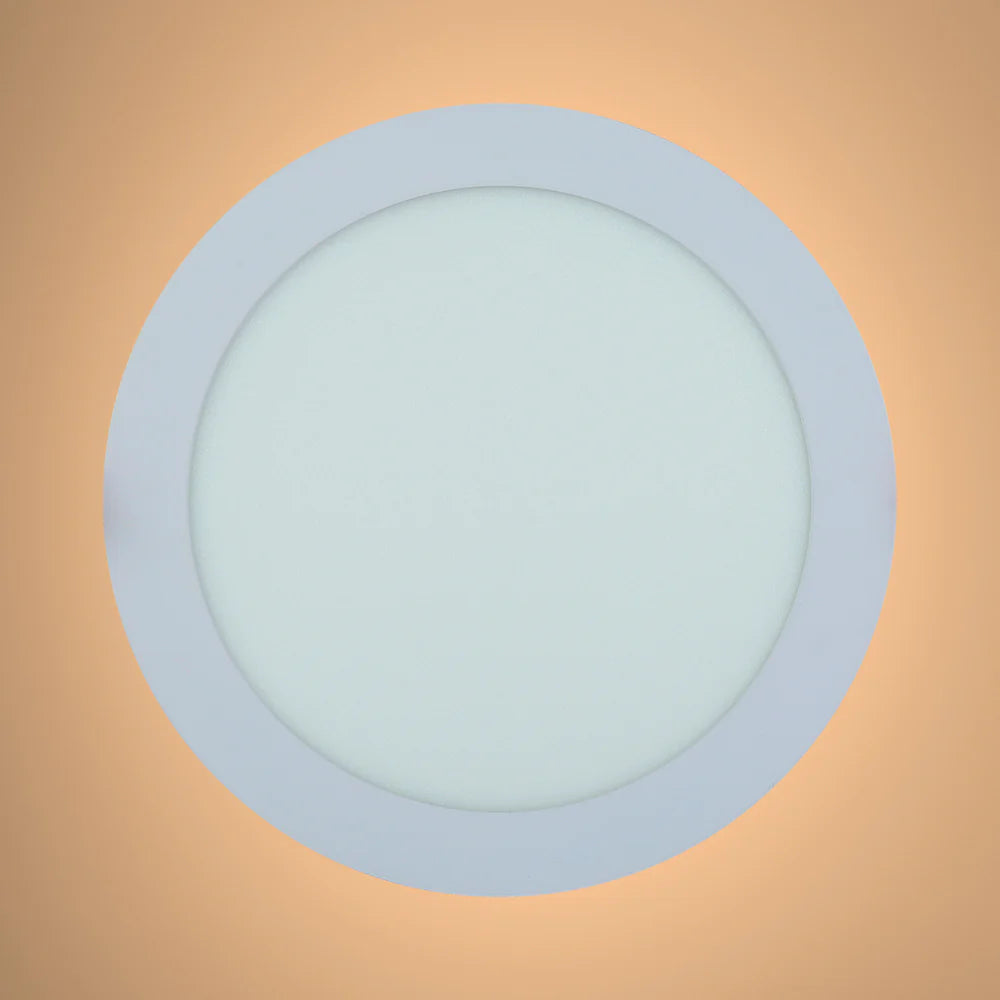

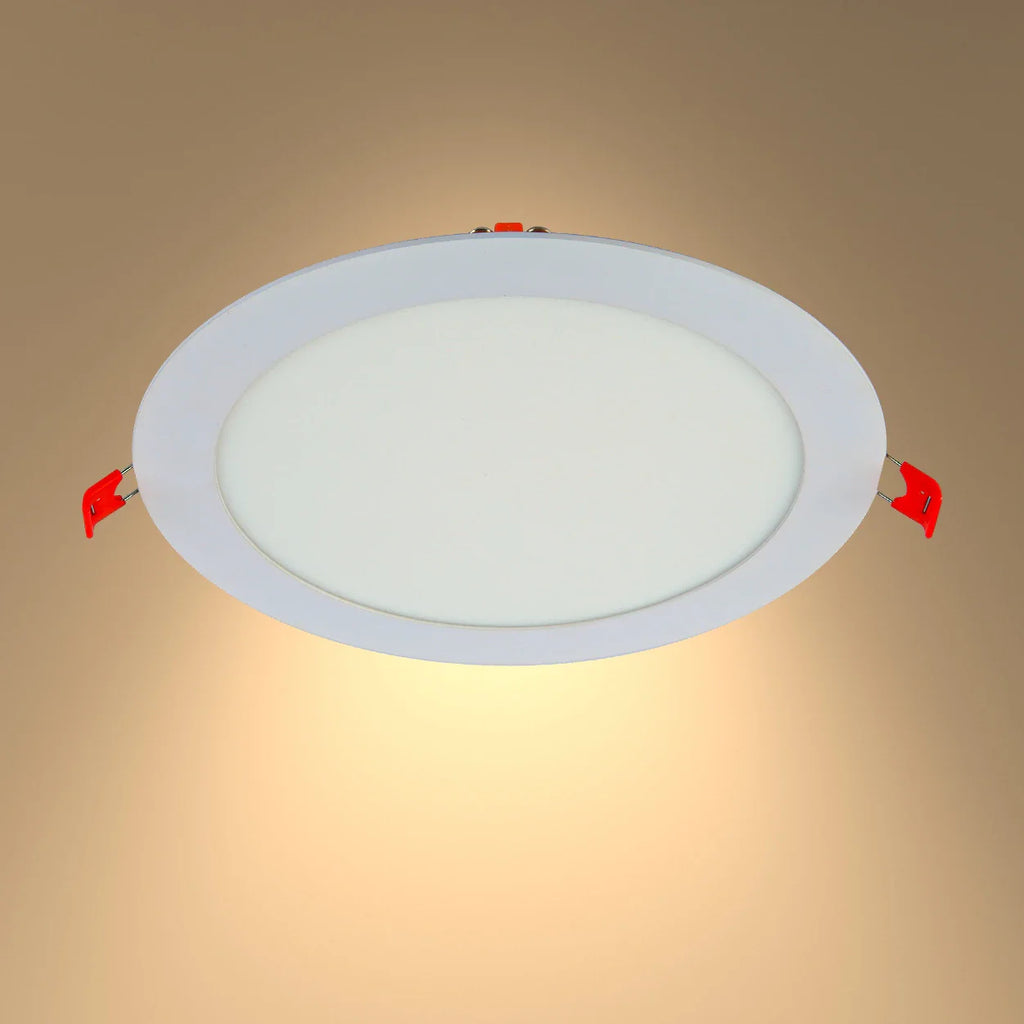

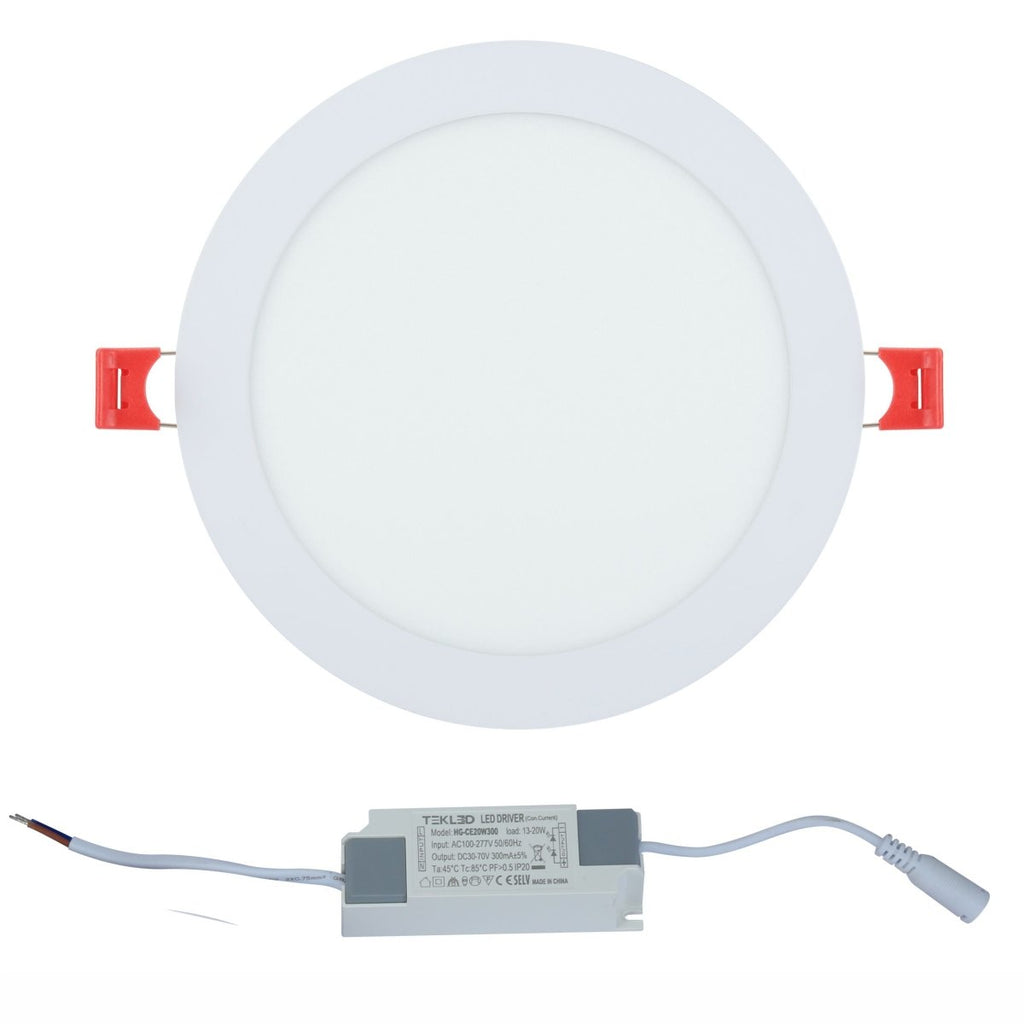

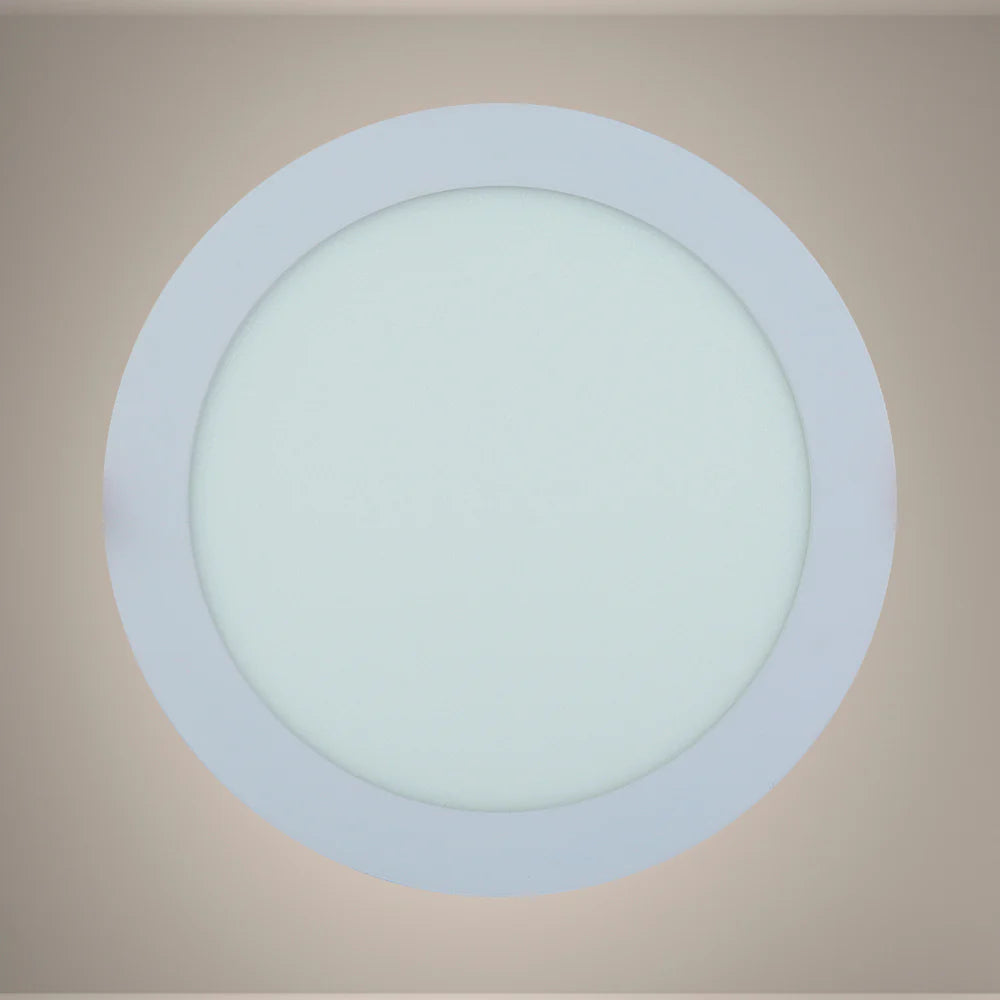

18W Downlight LED Round Slim Panel Light D220mm
£7.21
£11.77
Product Overview
This slim, round downlight is perfect for creating a modern and stylish look in any room. Its edge-lit design provides a soft, even glow, while the flicker-free operation ensures comfortable lighting. Choose from warm white, cool white or cool daylight options to match your décor and create the perfect ambience.
Key details at a glance:

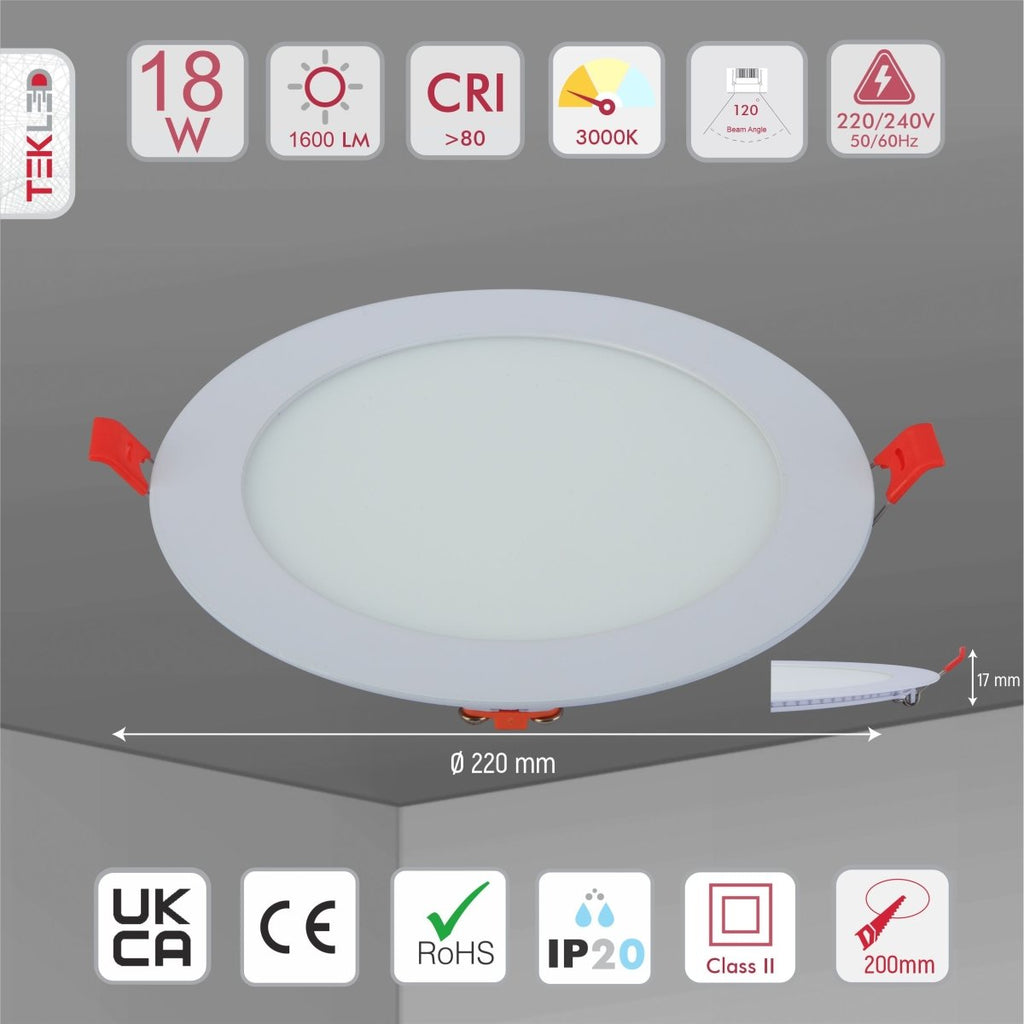

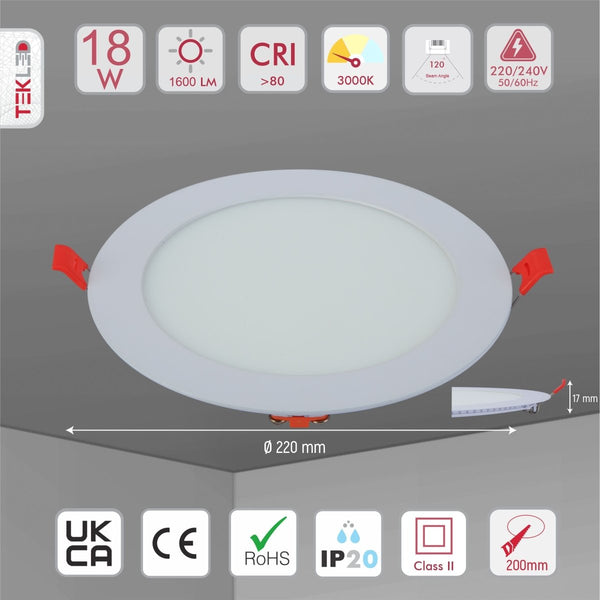

- Dimensions: 220mm (D) x 17mm (H)
- Cutout size: 200mm (D)
- Wattage: 18W
- Light output: 1600-1800 lumens
- Colour temperature: 3000K, 4000K or 5700K
Perfect for:

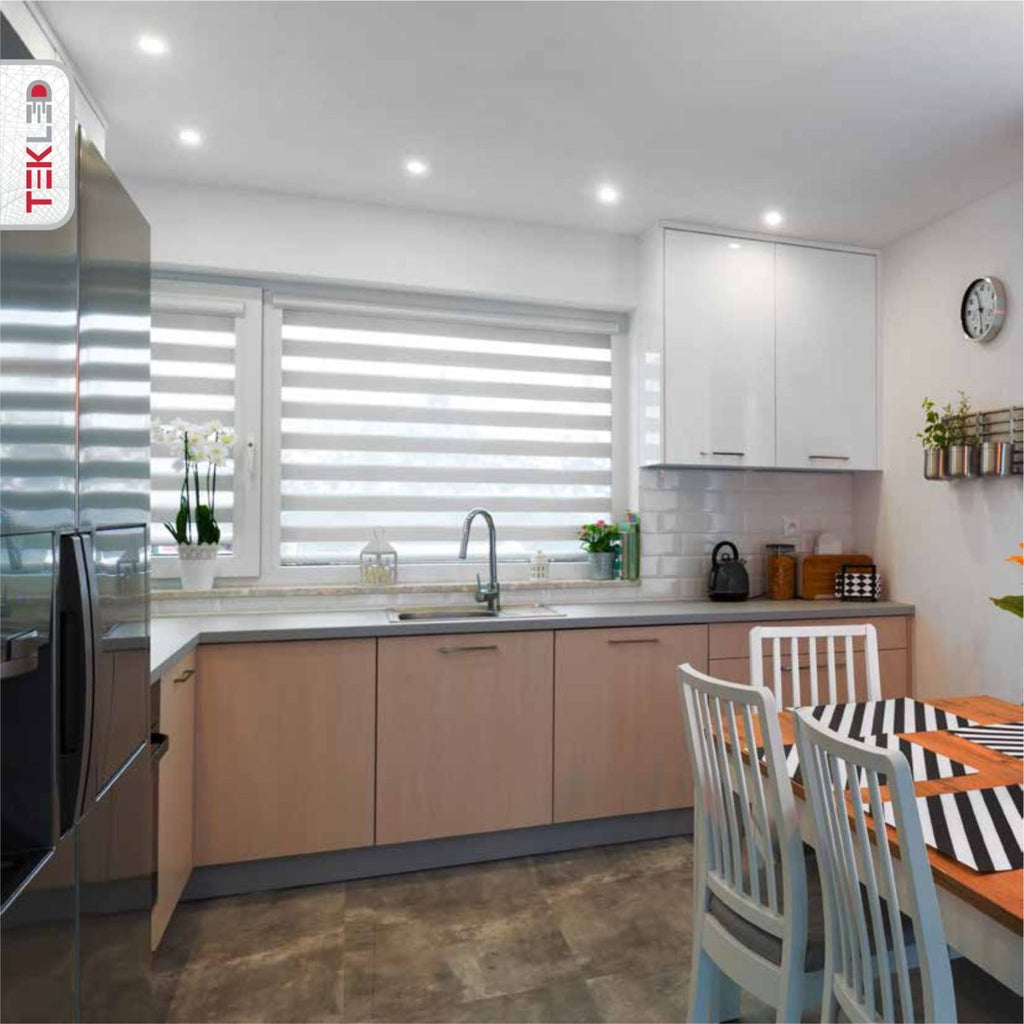

- Kitchens: Bright, even lighting for food preparation and cooking
- Bathrooms: Creates a relaxing atmosphere for bathing and grooming

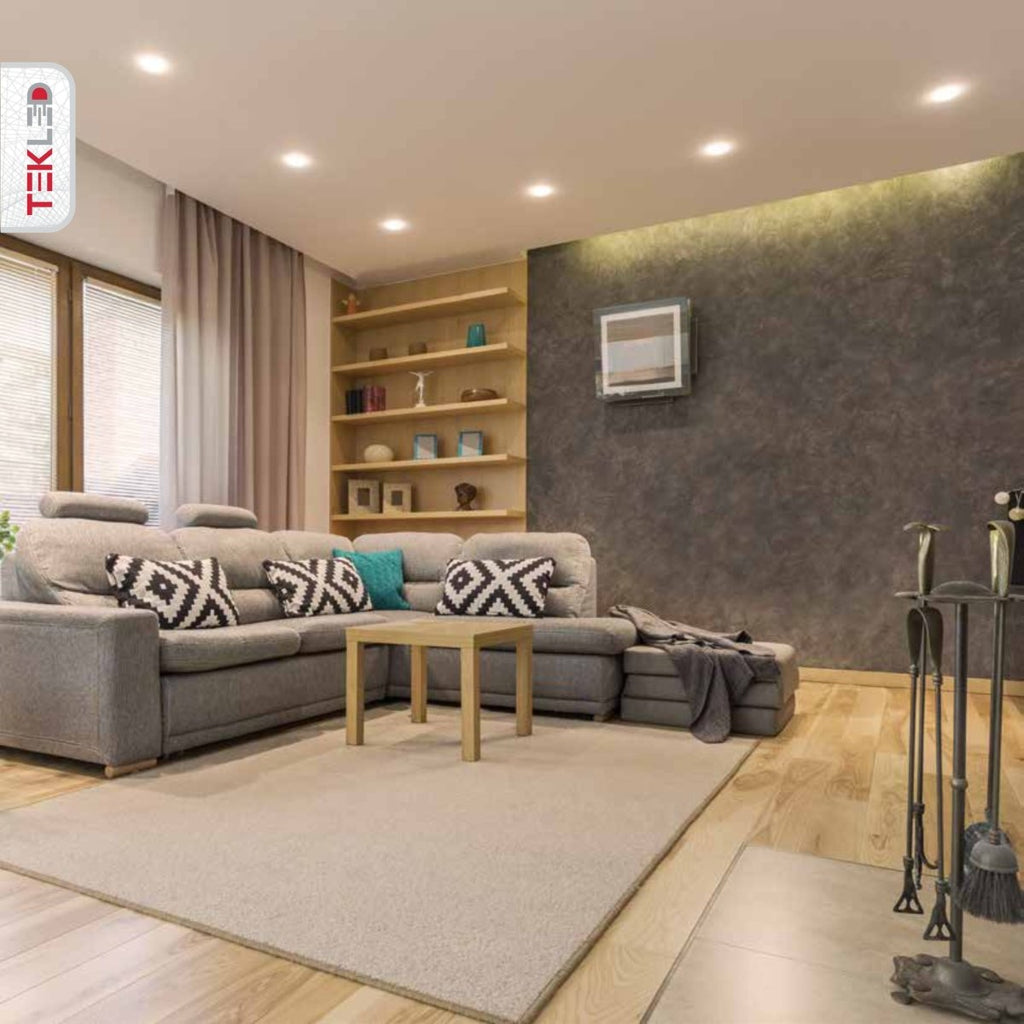

- Living rooms: Adds a touch of elegance to your décor

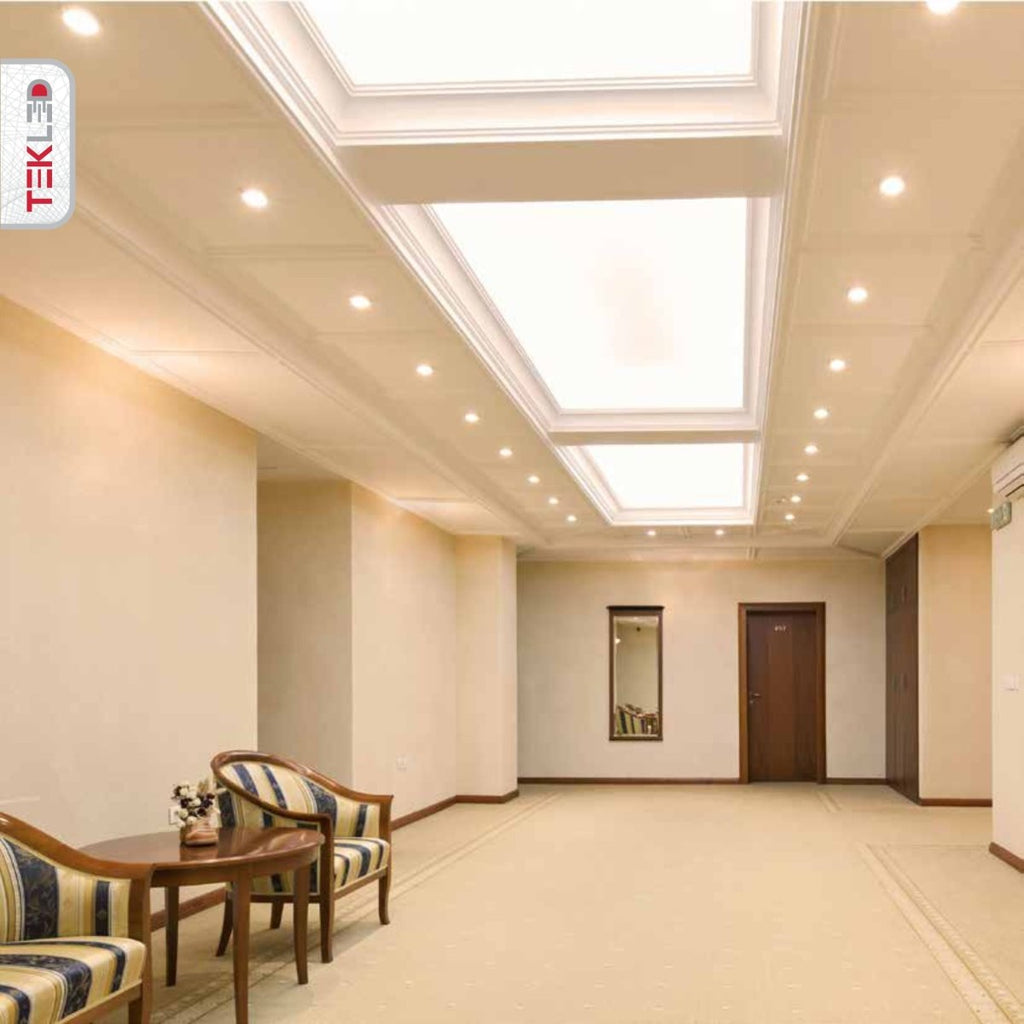

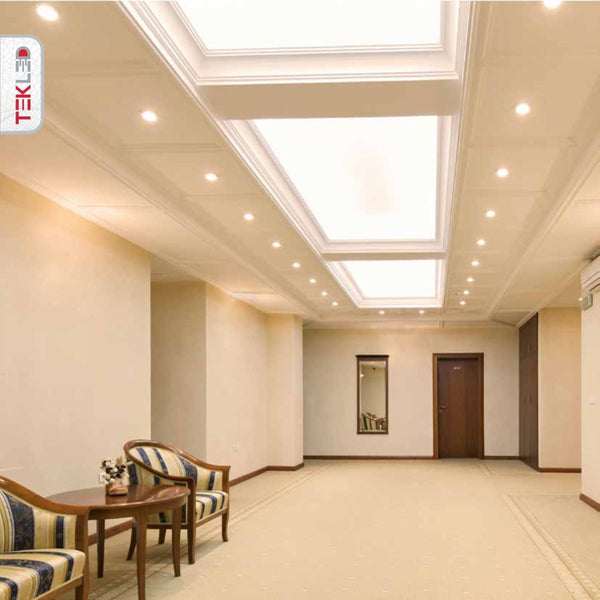

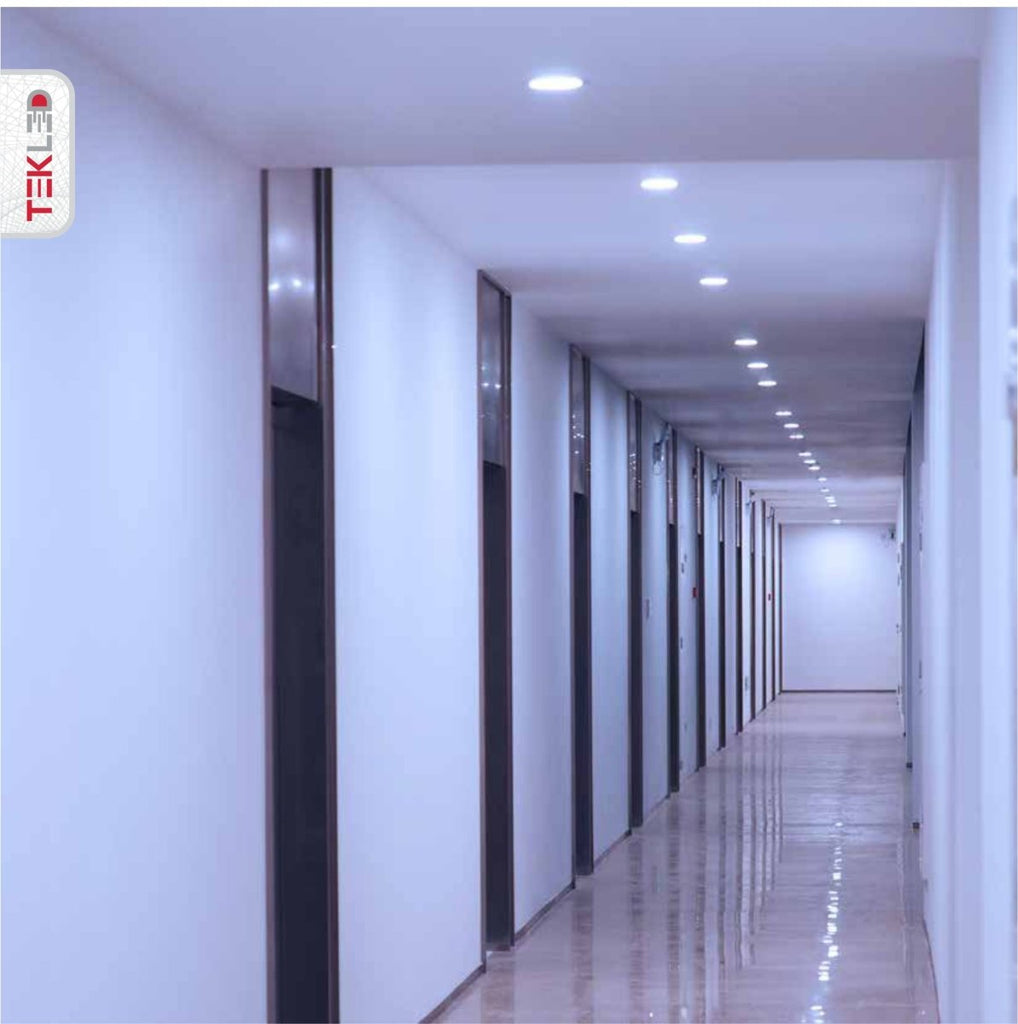

- Hallways and corridors: Provides general illumination and guides the way
For more details, see the full technical specifications on the corresponding tab.
Technical Specifications
| Name | Downlight LED Round Slim Panel Light 18W Warm White Cool White Cool Daylight D220mm |
| Product Code | 165-03612 | 165-03614 | 165-03615 |
| Power | 18W |
| Power Source | Hardwired |
| Voltage | 220/240V AC 50/60Hz |
| Lamp Holder Type | Built-in LED |
| Protection Class | Class II |
| Dimmability | Non-Dimmable |
| Light Source | SMD 2835 LED |
| Led Quantity | 5P18S 90 PCS |
| Bulbs | Integrated LED, no need additional bulb |
| Lit Type | Edge Lit |
| Lumen | 1600lm | 1800lm |
| Luminous Efficacy | 90lm/W | 100lm/W |
| Lux | 45Lux @2m | 48Lux @2m | 53Lux @2m |
| CRI | CRI>80 |

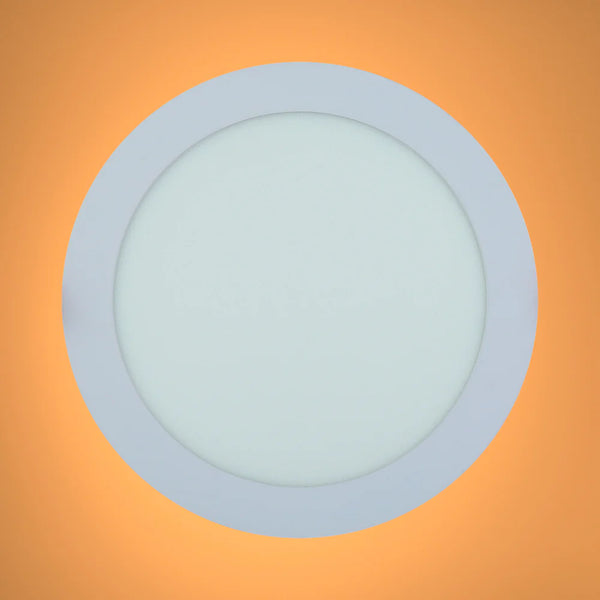

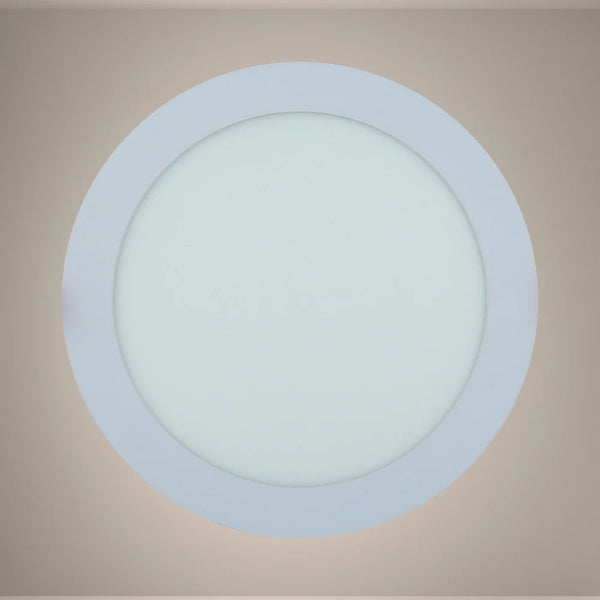

| CCT (Kelvin) Light Colour | 3000K Warm White | 4000K Cool White | 5700K Cool Daylight |
| Flickering | Flicker-free |
| IP Class | IP20 |

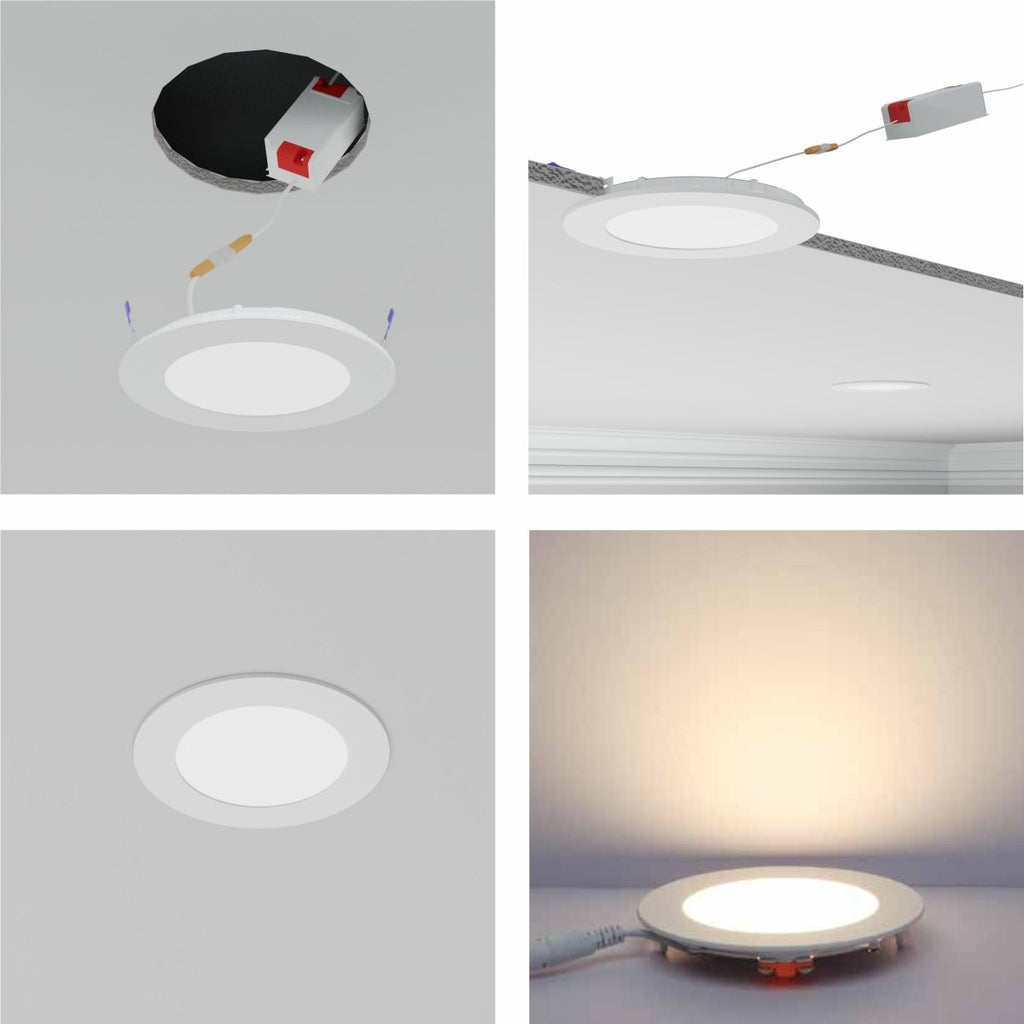

| Mount Type | Recessed Mount |
| Product Dimensions (LxWxH) (DxH) | D220x17mm |
| Cutout Size | D200mm |
| Power Cord Length | 150mm |
| Made Of Materials | Aluminium, Steel, Polystyrene |
| Product Colour | White |
| Paint Type | Spray Painted |
| Diffuser Material | PS (Polystyrene) |
| Diffuser Type | Opal |
| Driver Type | Constant Current Driver |
| Driver Power | 18W |
| Driver Input Voltage | 100-277V AC 50/60Hz |
| Driver Output Voltage | 30-70V DC |
| Driver Output Current | 300mA |
| Surge Protection Level | 2kV |
| Power Factor | pf>0.5 |
| Control | On/Off |
| Operating Temperature (C) | -20/+55C |
| New Energy Rating | F | F |
| Energy Rating Range | A-G |
| Warranty | 2 year |
| Life Span | 30000h |
| Net Weight | 326g |
| Gross Weight | 391g |
| Box Dimension (LxWxH) | 22.5x2.8x25.5cm |

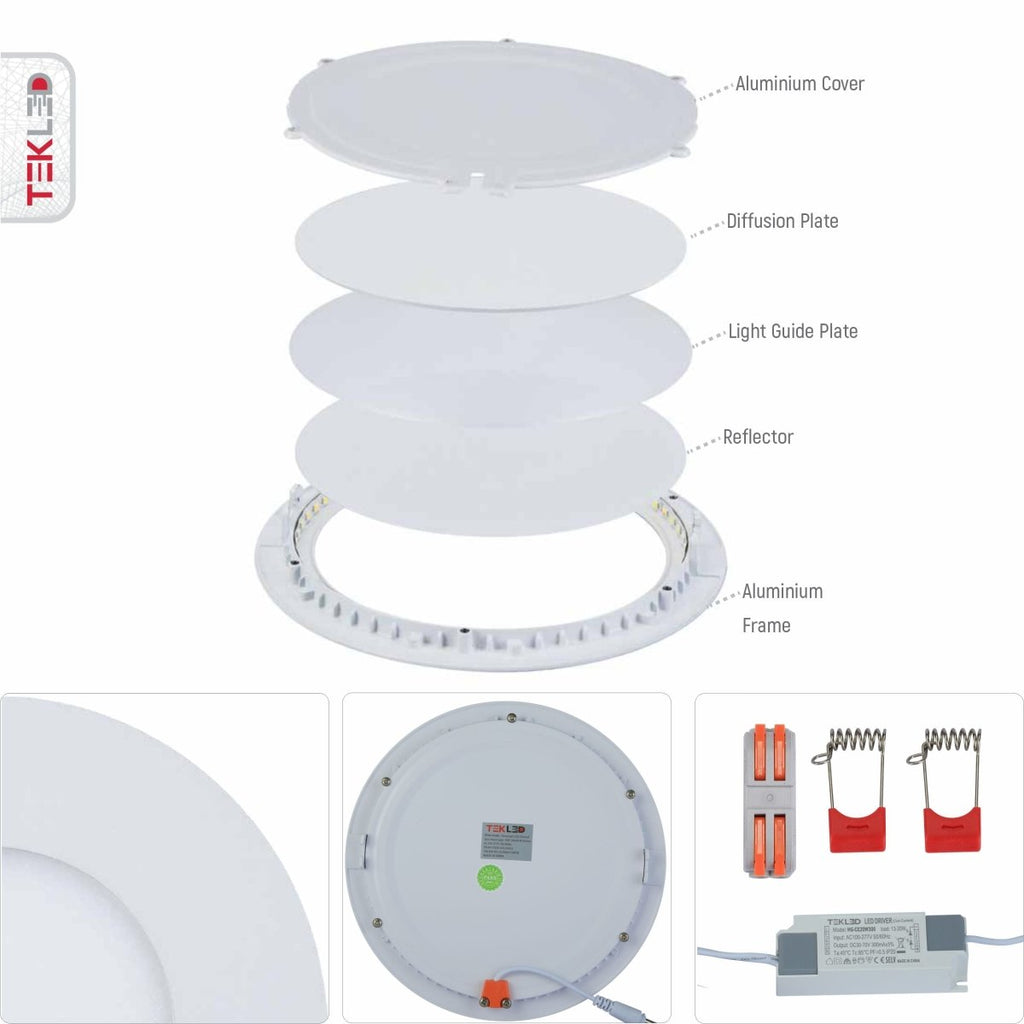

| Box Content | 1 pc Light Fixture, User Manual, 2 pcs Springs, 1 pc Terminal |
| Certifications | UKCA, CE, RoHS |
