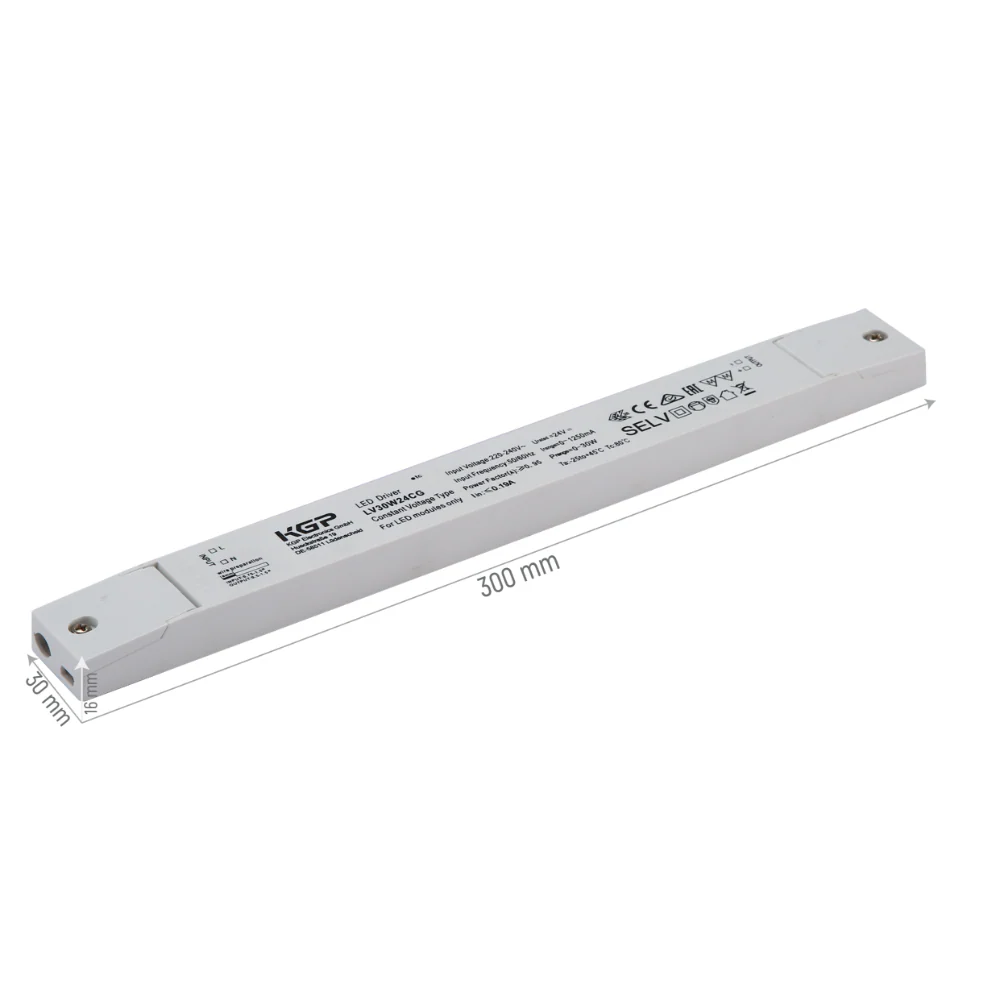

KGP Constant Voltage LED Driver 24V 30W 1.25A for LED Strips-Modules
£26.42
£31.90
Rated Excellent on Google · 42,000+ positive reviews · See what customers say ↓
Free UK delivery on TEKLED orders over £60
TEKLED orders under £60: £5 delivery
Delivering outside the UK? Charges vary by location, so please contact us for details before ordering.
Product Overview
This KGP constant voltage LED driver is perfect for powering your LED strip lights and modules. It offers a reliable and efficient 24V DC output, ensuring consistent and flicker-free illumination. With a compact design, it easily integrates into various lighting setups. Plus, enjoy better value for money with its impressive 50,000-hour lifespan.
Key details at a glance:
- Dimensions: 300mm (L) x 30mm (W) x 18mm (H)
- Output voltage: 24V DC
- Output current: 0-1250mA
- Power: 30W
- Dimmable: Use with a 24V dimmer controller to dim your LEDs
For more details, see the full technical specifications on the corresponding tab.
Technical Specifications
| Name | KGP Constant Voltage LED Driver 24V 30W 1.25A for LED Strips-Modules |
| Product Code | 890-15959 LV30W24CG |
| Power | 30W |
| Type | Constant Voltage 24V DC |
| Voltage | 220/240V AC 50/60Hz |
| Output Voltage | 24V DC |
| Output Current | 0-1250mA |
| Power Range | 0-30W |
| Led Type | for LED Modules and LED Strip lights |
| Output | single output |
| Protection Class | Class II |
| Dimmability | Non-Dimmable but can be used with 24V dimmer controllers for dimming the LEDs |
| Flickering | Flicker-free |
| IP Class | IP20 |
| Product Dimensions (LxWxH) (DxH) | 300x30x18mm |
| Made Of Materials | Plastic Box |
| Product Colour | White |
| Input Cable Size | 0.75 - 1.5 mm |
| Output Cable Size | 0.5 - 1.5 mm |
| Power Factor | pf>0.95 |
| Operating Temperature (C) | -25/+45C |
| Temperature (tc) | 90C |
| Warranty | 3 year |
| Life Span | 50000h |
| Box Dimension (LxWxH) | xxmm |
| Box Content | 1 Piece of driver |
| Certifications | UKCA, CE, ENEC, EAC, SELV |
