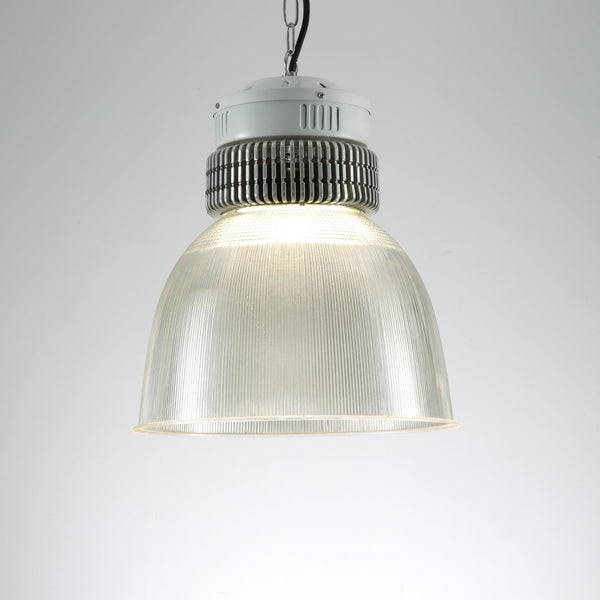

LED Radiator High bay 100W Cool White 4000K IP20
Product Overview

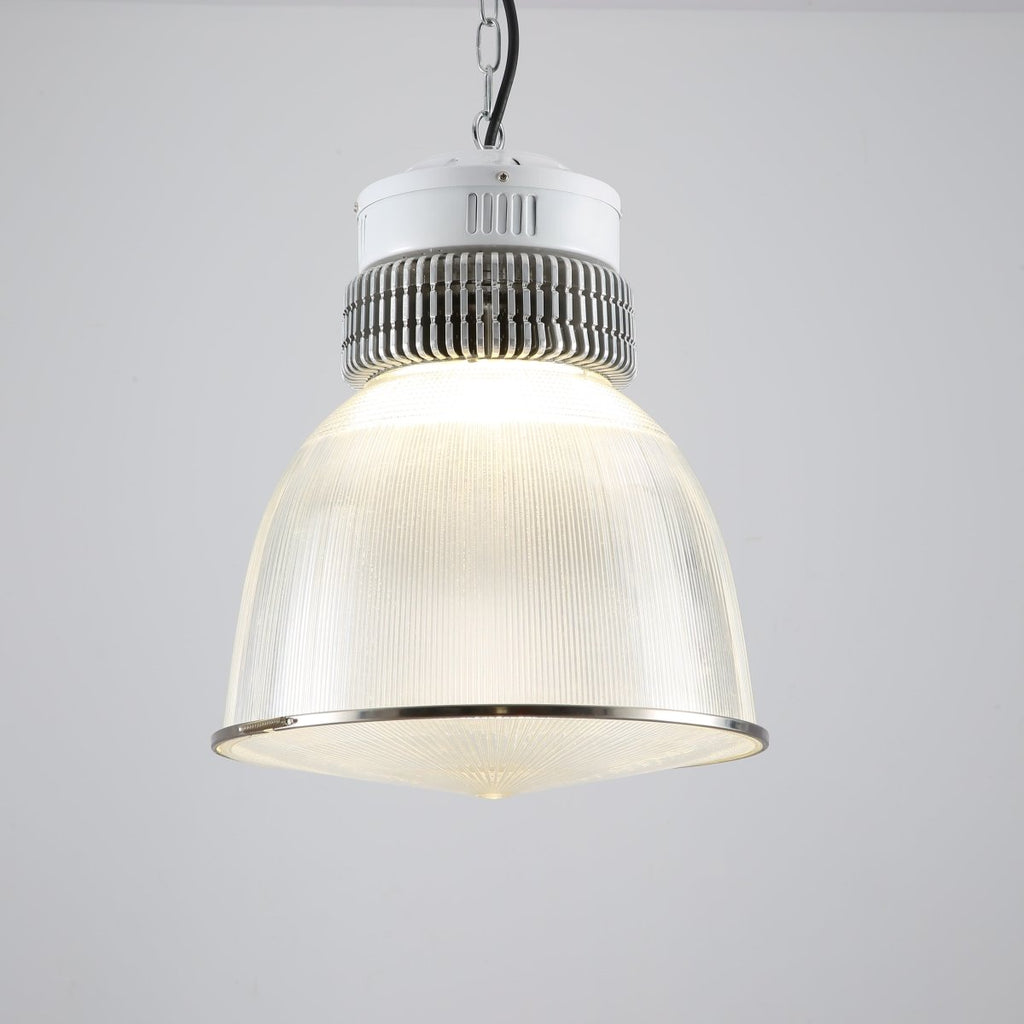

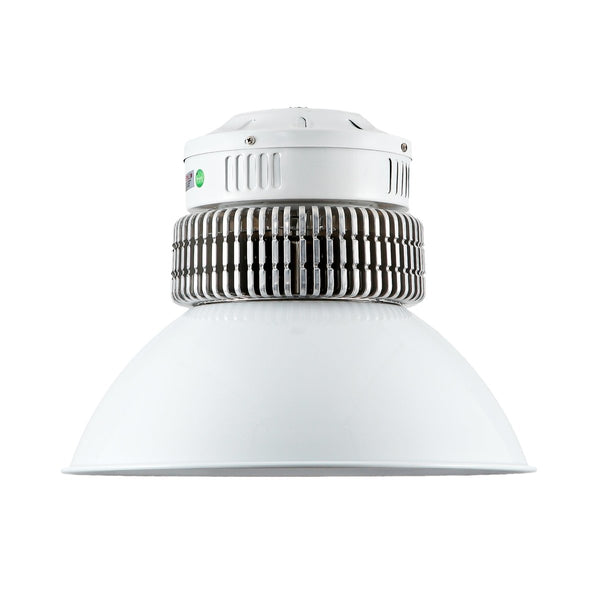

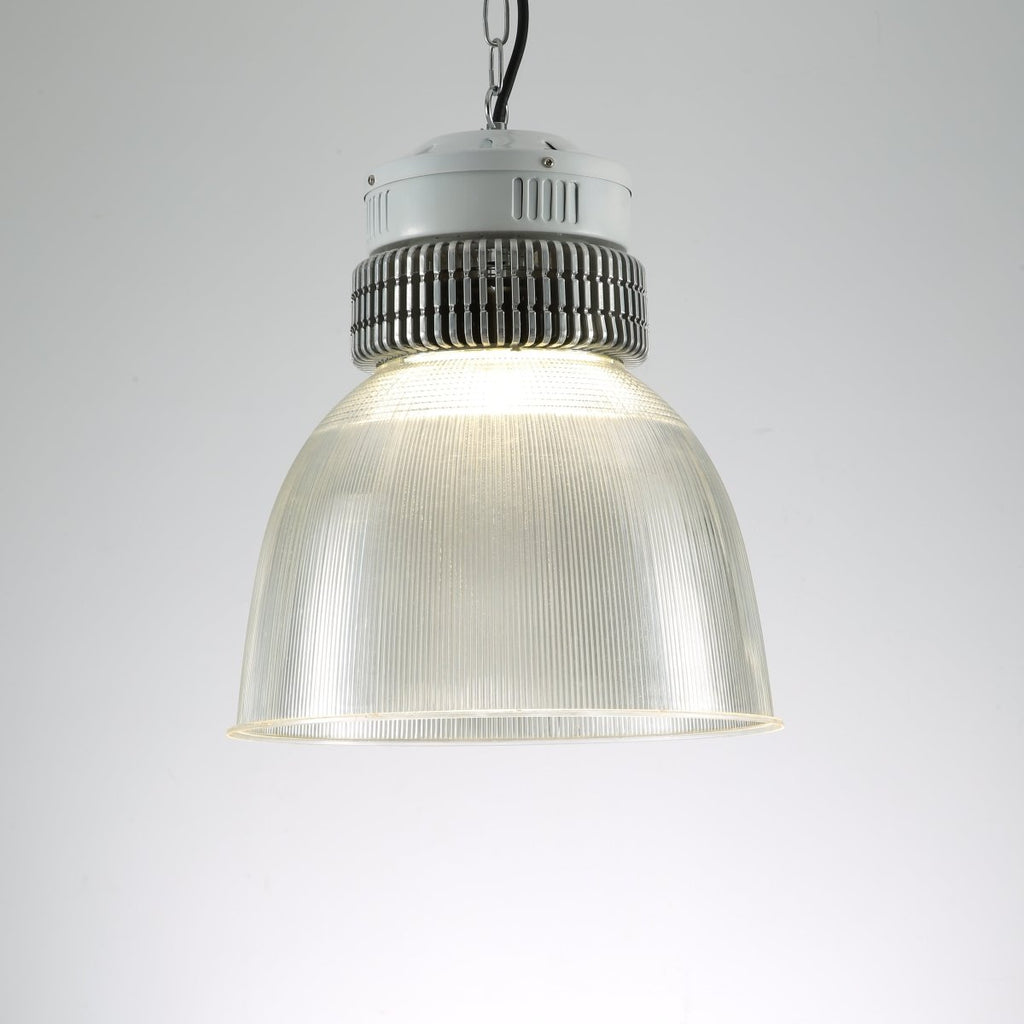

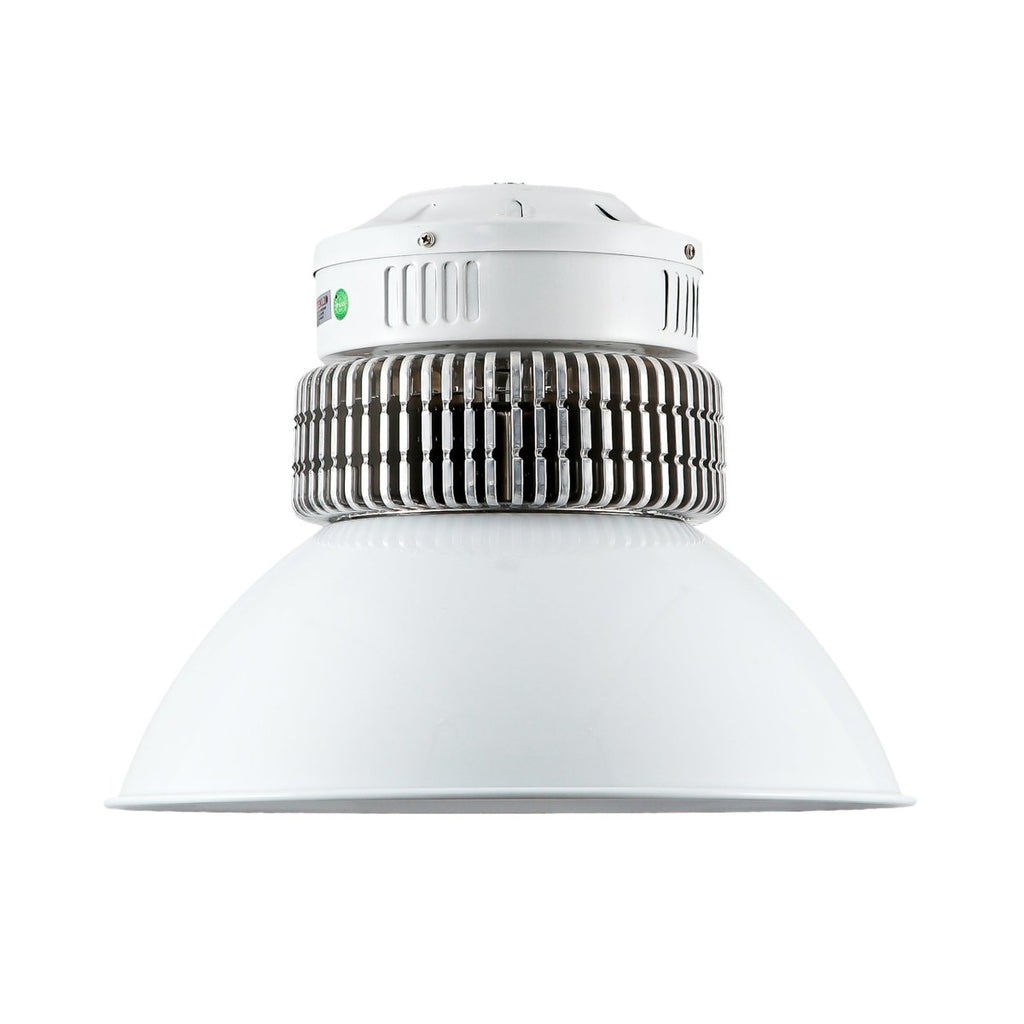

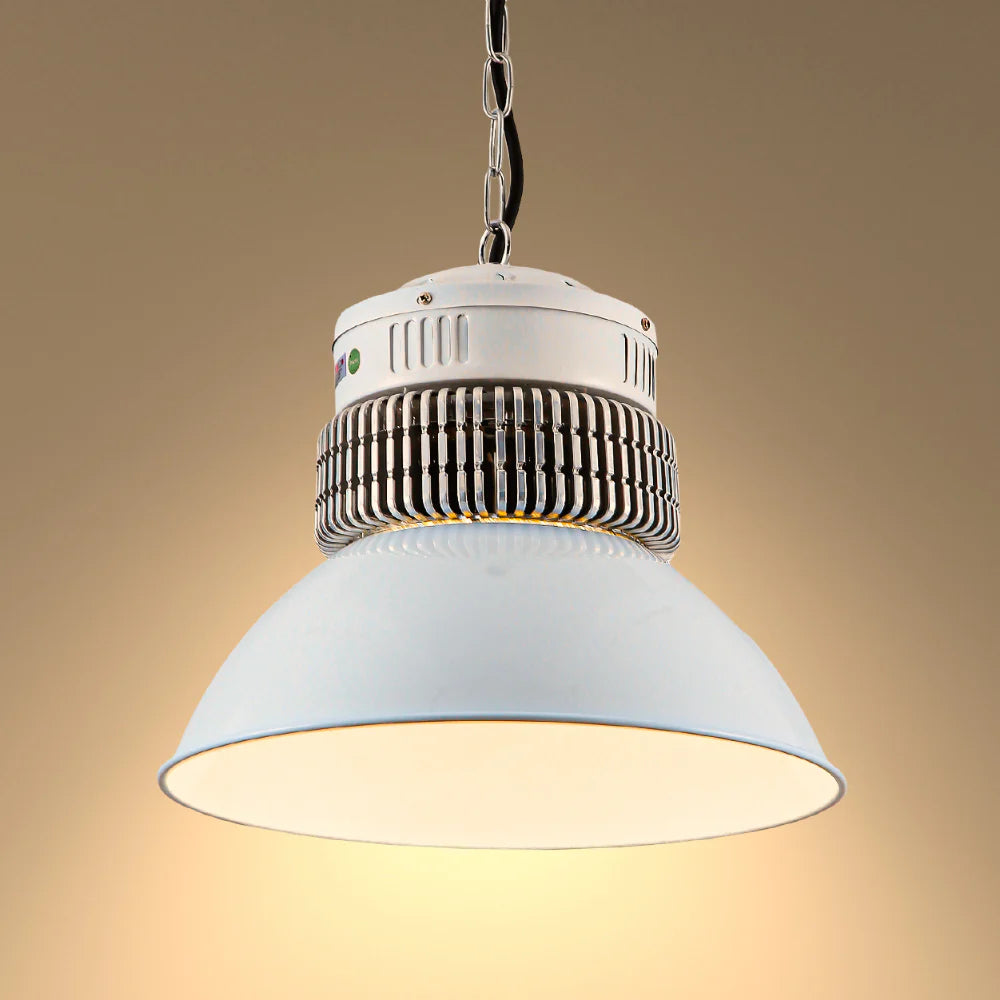

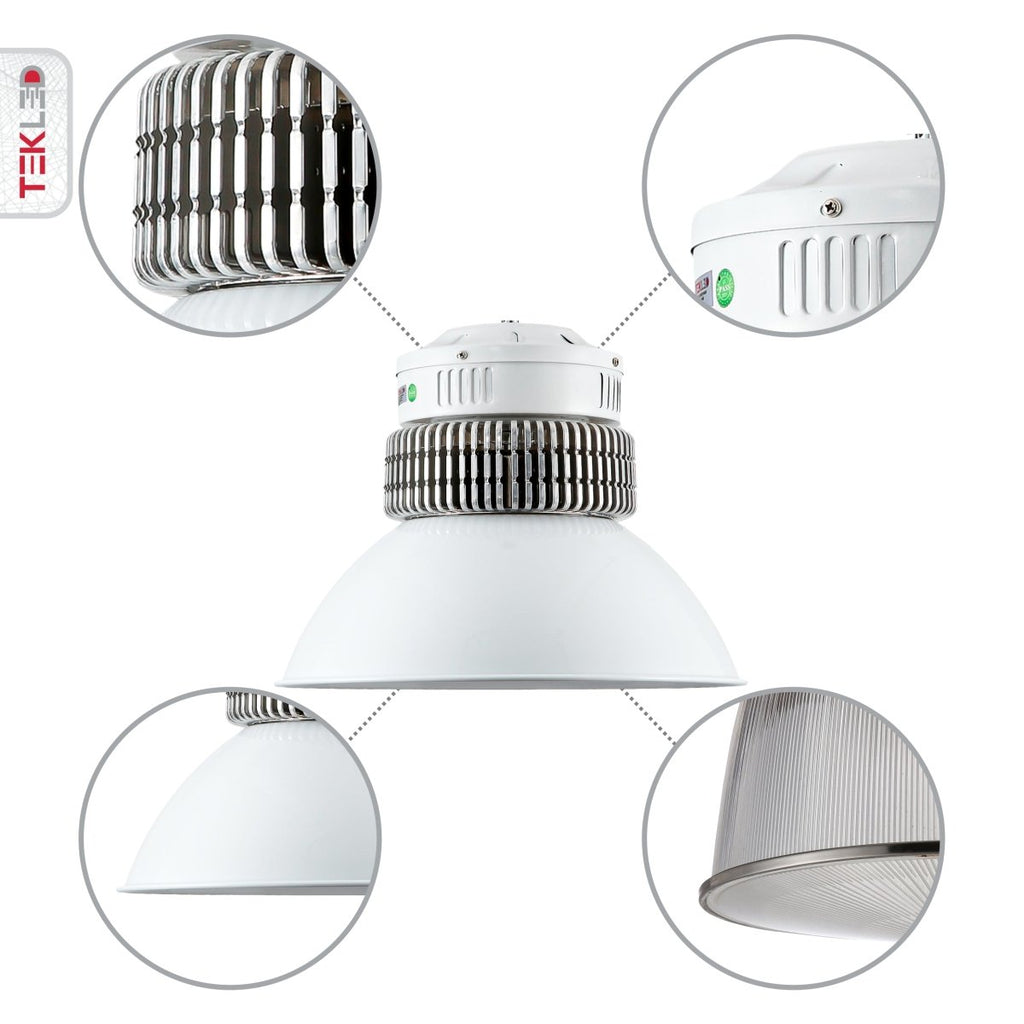

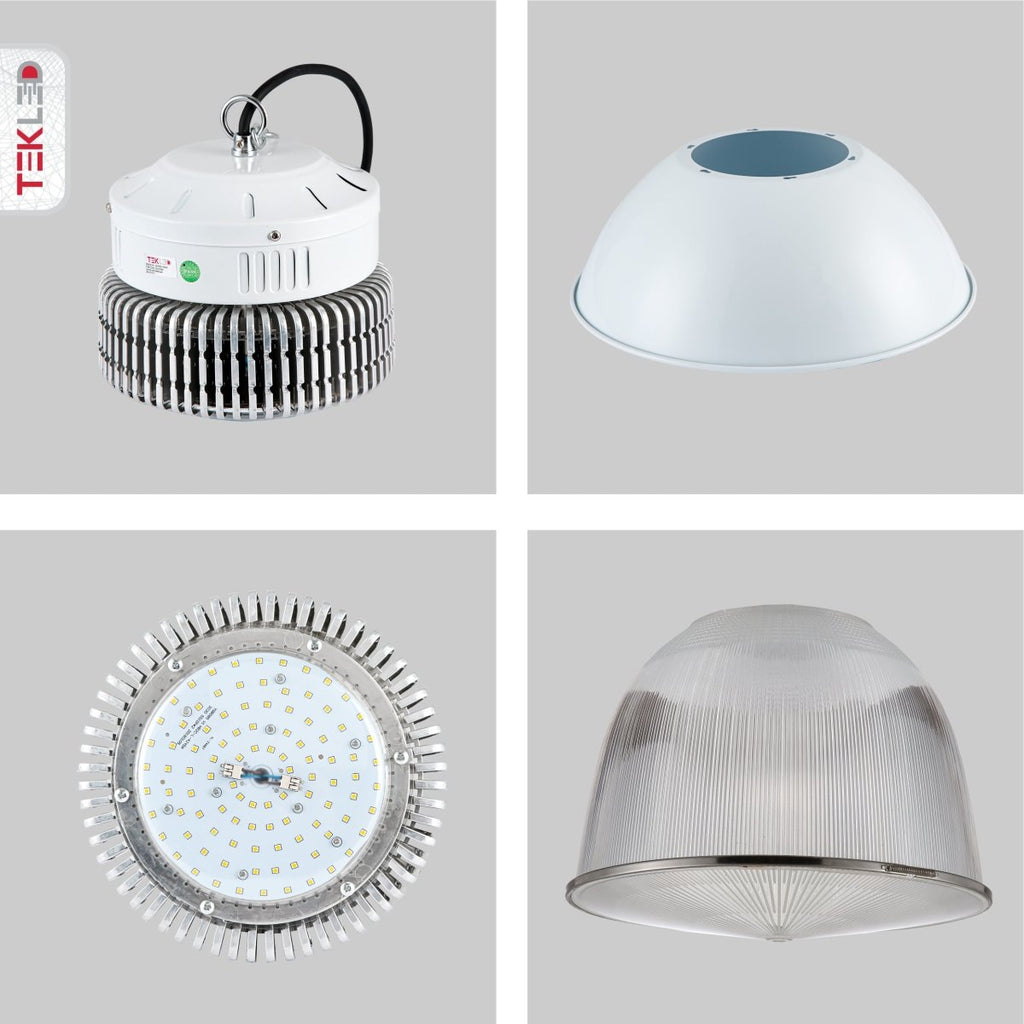

This high bay LED light is perfect for brightening large spaces with high ceilings. It provides powerful, cool white light, ideal for warehouses, factories, and other industrial settings. You can choose between three reflector options: metal, PC, or PC with a cover. The PC reflector with cover offers enhanced protection and durability, whilst the metal and PC reflectors provide a more economical solution. The metal reflector produces a slightly sharper beam angle than the PC variants, which are softer, more diffused and more efficient.
Key details at a glance:
- Dimensions: 245mm (D) x 235mm (H) (body only); 430mm (D) x 355mm (H) (whole item)
- Wattage: 90W (equivalent to much higher wattage with traditional lighting)
- Light output: 12300 lumens
- Lifespan: 60,000 hours - enjoy better value for money with super-efficient LEDs
- Dimmable: Compatible with 1-5V, 1-10V, PWM, and multiple timers
Perfect for:

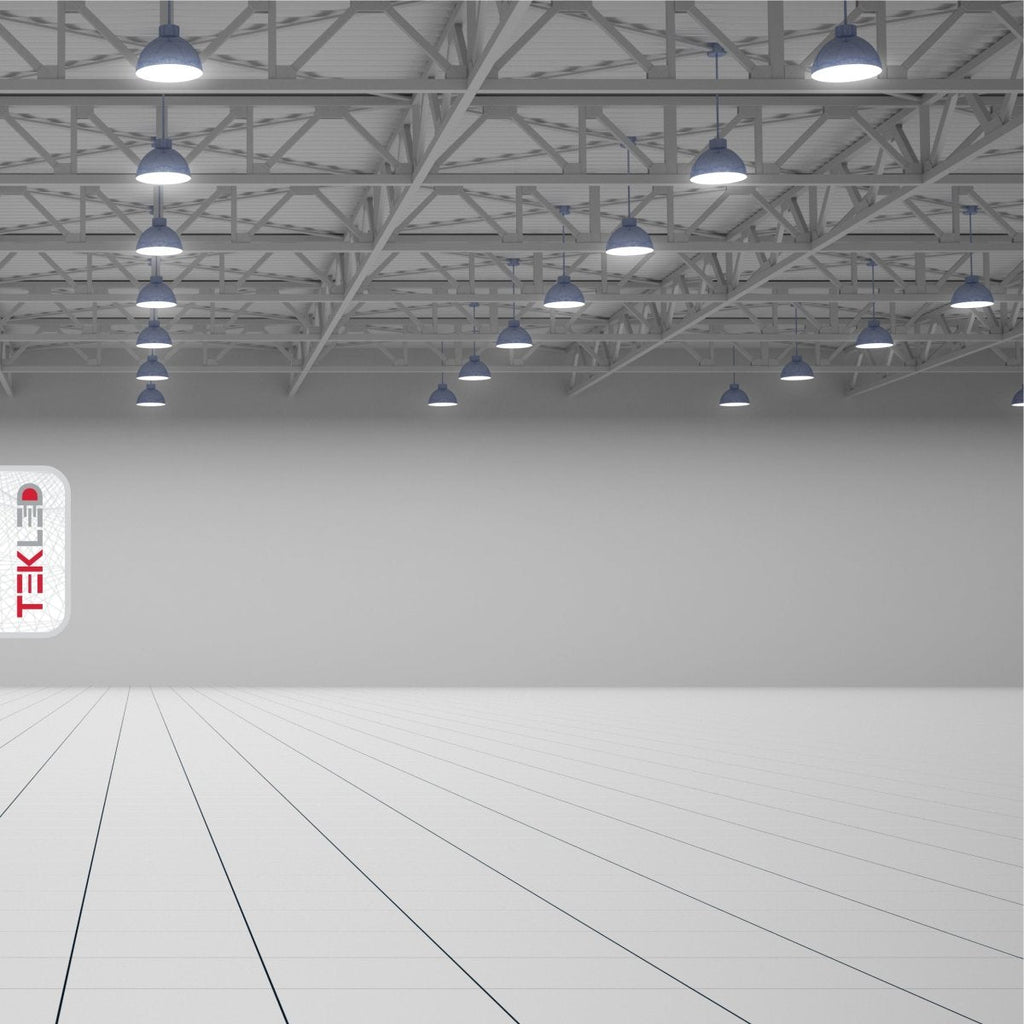

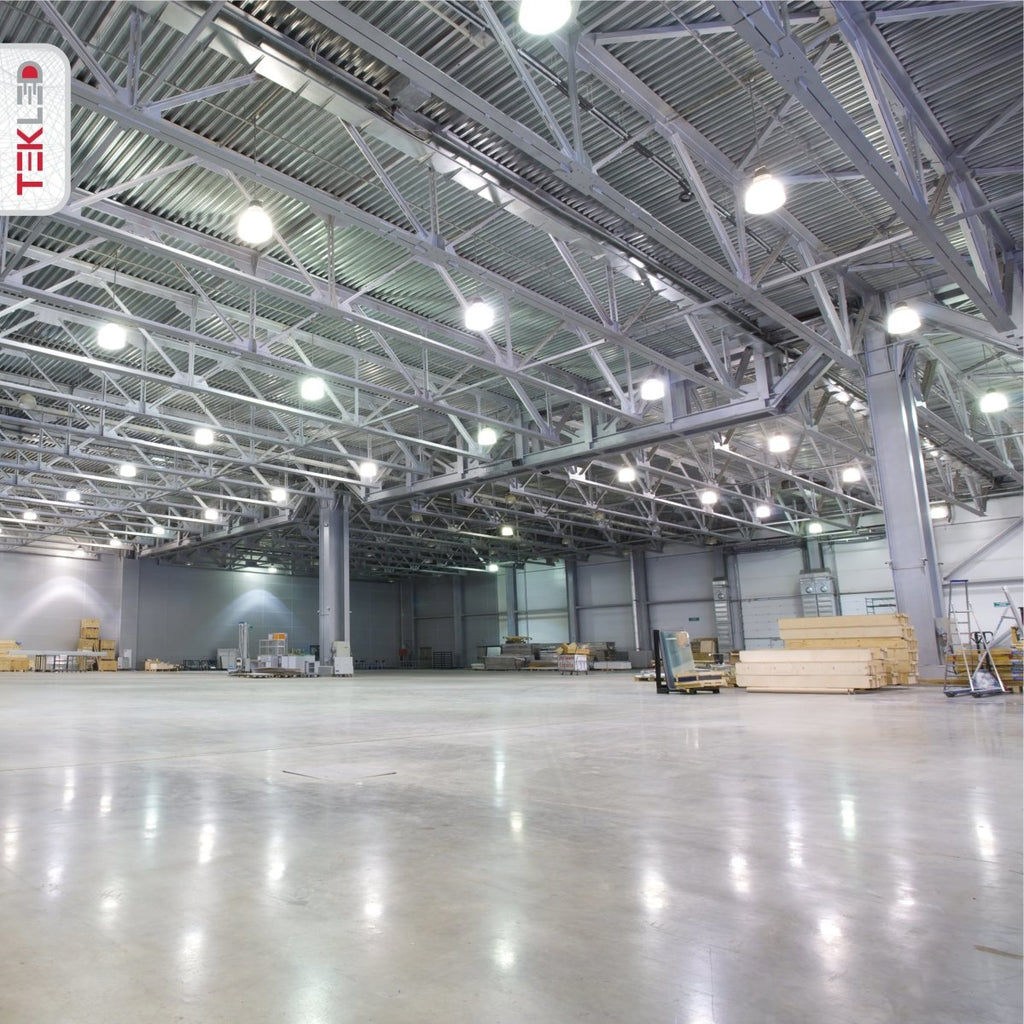

- Warehouses: Illuminate large storage areas effectively
- Factories: Provide bright, consistent light for production lines
- Retail spaces: Enhance product visibility and create a welcoming atmosphere

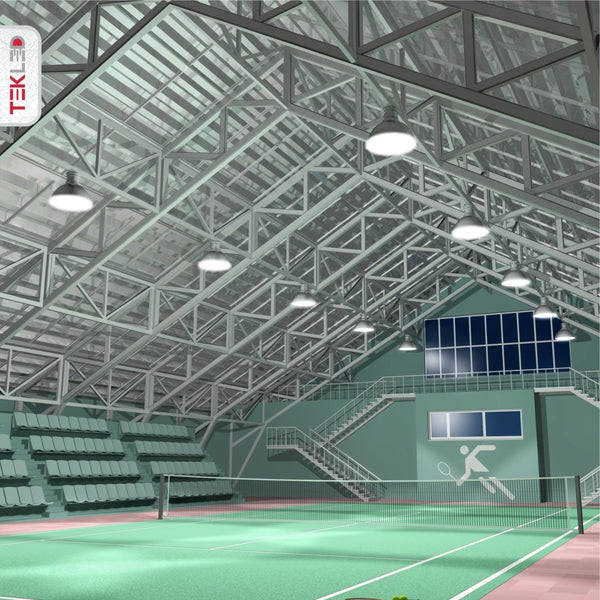

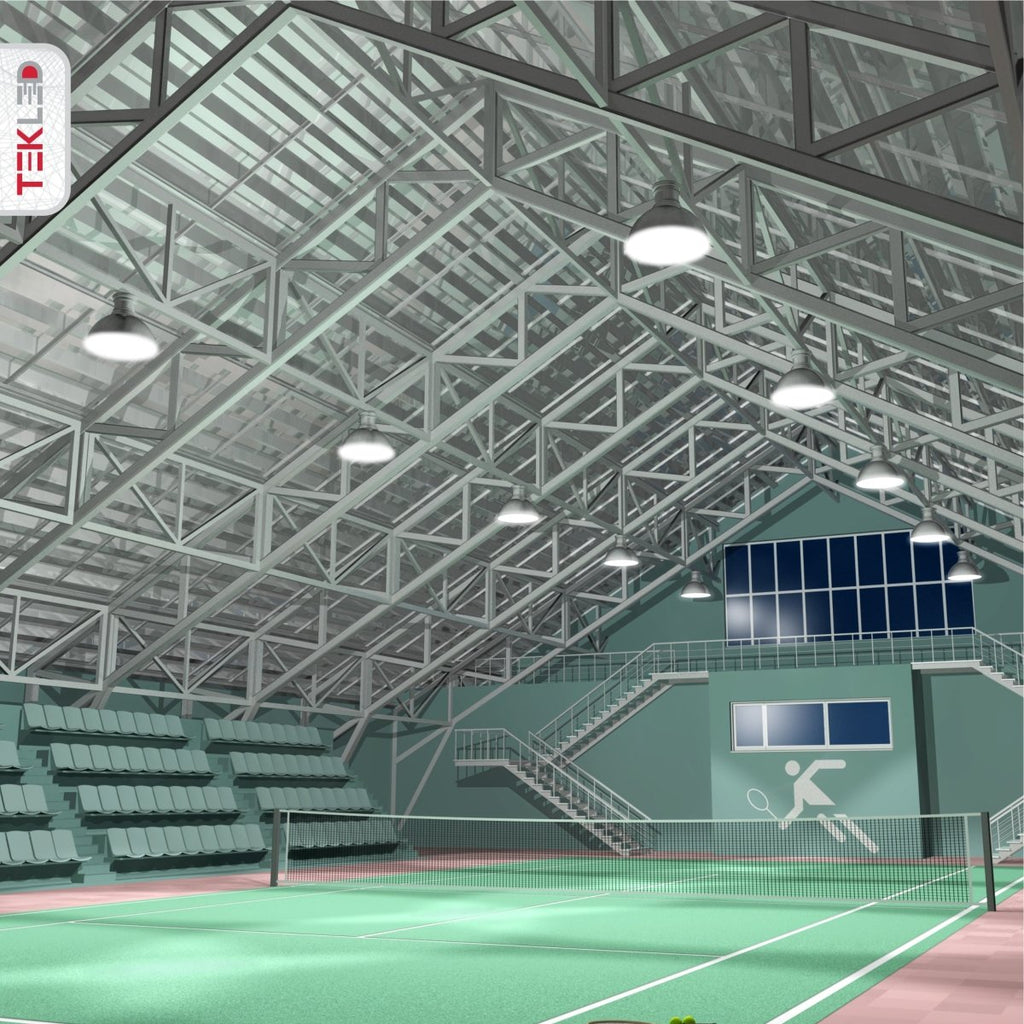

- Sports halls: Ensure optimal lighting conditions for various activities
For more details, see the full technical specifications on the corresponding tab.
Technical Specifications
| Name | LED Radiator High bay 100W Cool White 4000K IP20 |
| Product Code | 230-03540 | 230-03542 | 230-035420 |
| Power | 90W |
| Power Source | Hardwired |
| Voltage | 220/240V AC 50/60Hz |
| Lamp Holder Type | Built-in LED |
| Protection Class | Class I |
| Dimmability | Dimmable |
| Light Source | SMD 3030 LED |
| Led Quantity | 10P5S*2 100 PCS |
| Bulbs | Integrated LED, no need additional bulb |
| Lumen | 12300lm |
| Luminous Efficacy | 135lm/W |
| Lux | avg 75Lux @6m height 12m diameter, max 180Lux |
| CRI | CRI>70 |
| CCT (Kelvin) Light Colour | 4000K Cool White |
| Flickering | Flicker-free |
| IP Class | IP20 |
| Mount Type | Suspended |
| Function Mode | 1-5V, 1-10V, PWM, Multiple Timers |

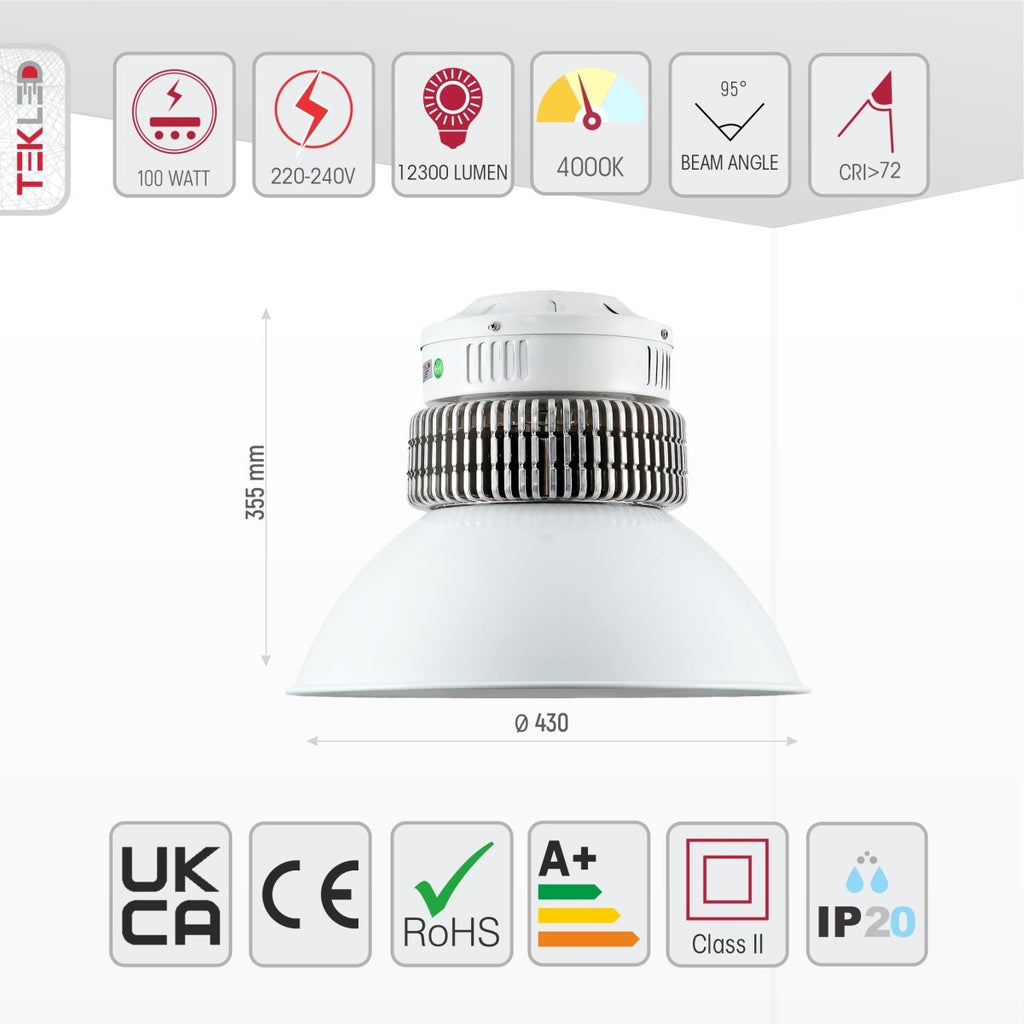

| Product Dimensions (LxWxH) (DxH) | body D245x235mm whole item D430x355mm |
| Power Cord Length | 500mm |
| Made Of Materials | Aluminium, Steel, Polycarbonate |
| Product Colour | White |
| Paint Type | Spray Painted |
| Suspension Type | Chain |
| Suspension Length | 250mm |
| Driver Brand | Inventronics EUM-100S280DG |
| Driver Type | Constant Current Driver |
| Driver Power | 100W |
| Driver Input Voltage | 90~305 V AC / 127~300 V DC 50/60Hz |
| Driver Output Voltage | 18-54V DC |
| Driver Output Current | 2800mA |
| Surge Protection Level | 6kV |
| Power Factor | pf>0.95 |
| Control | 1-5V, 1-10V, PWM, Multiple Timers |
| Operating Temperature (C) | -40/+60C |
| New Energy Rating | D |
| Energy Rating Range | A-G |
| Warranty | 5 year |
| Life Span | 60000h |
| Net Weight | 2.06kg |
| Gross Weight | 2.4kg |
| Box Dimension (LxWxH) | 255x255x280mm |

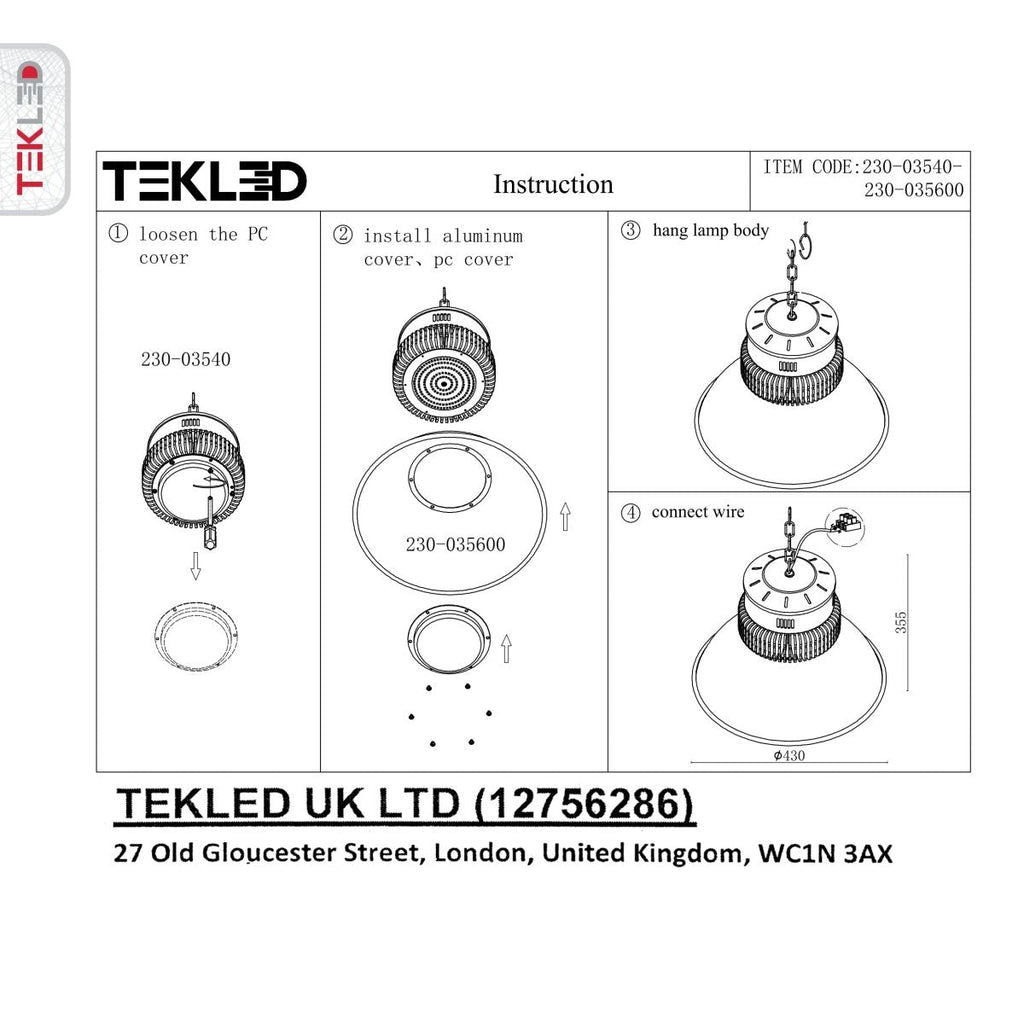

| Box Content | 1 pc Lamp Body , 1 pc Instruction |
| Certifications | UKCA, CE (LVD, EMC) |
