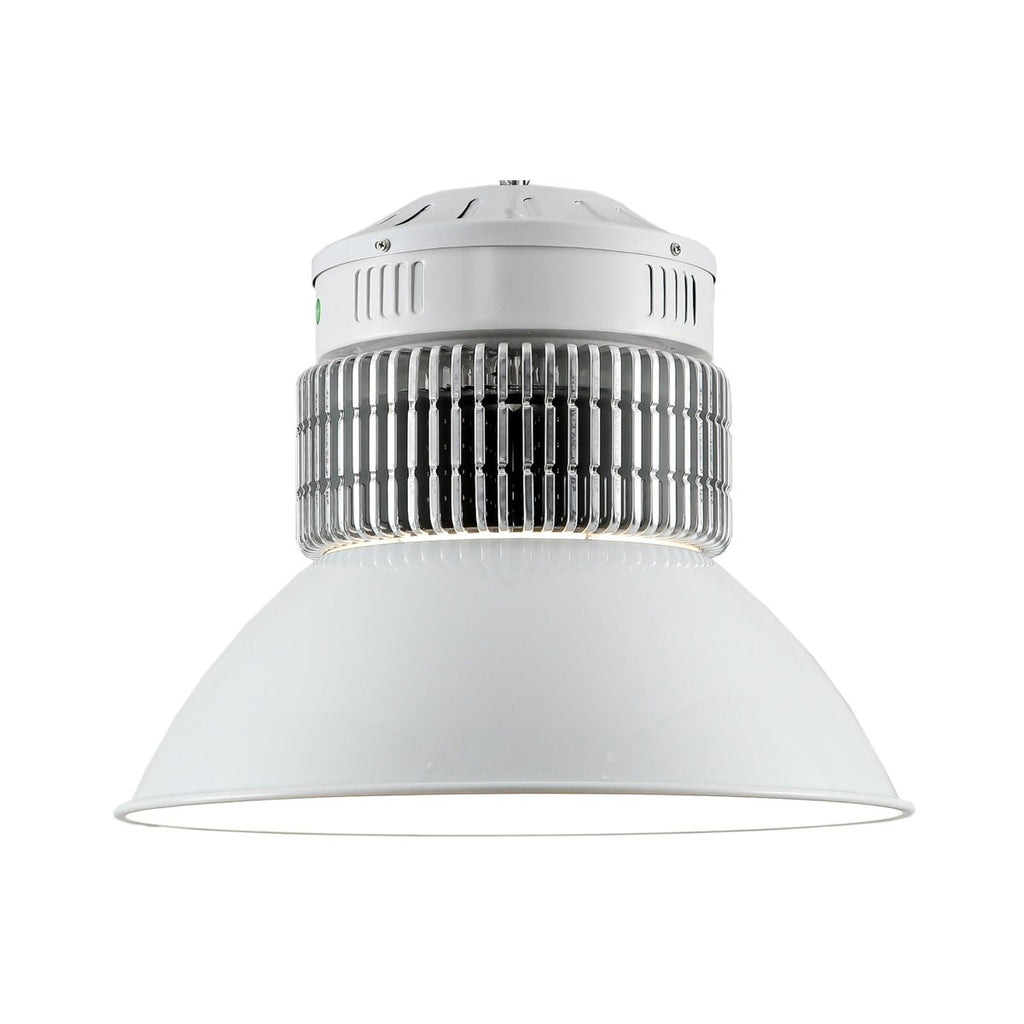

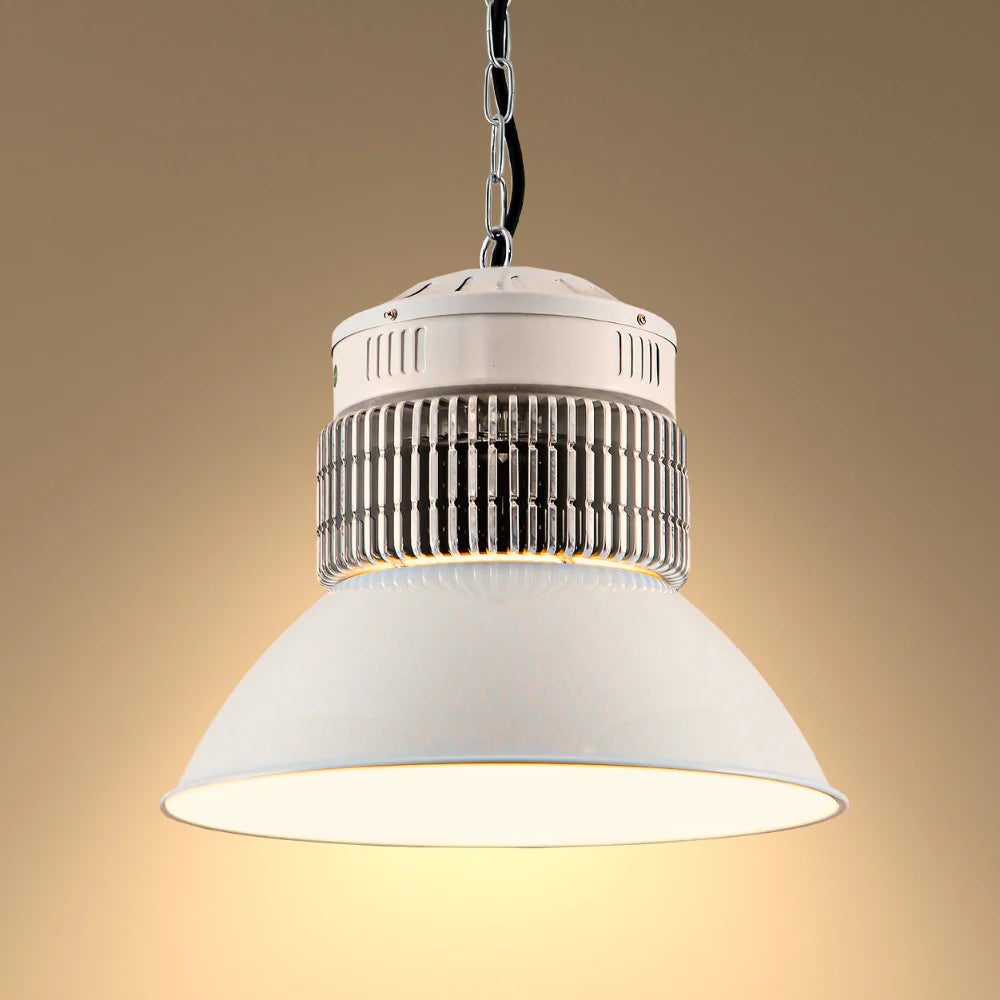

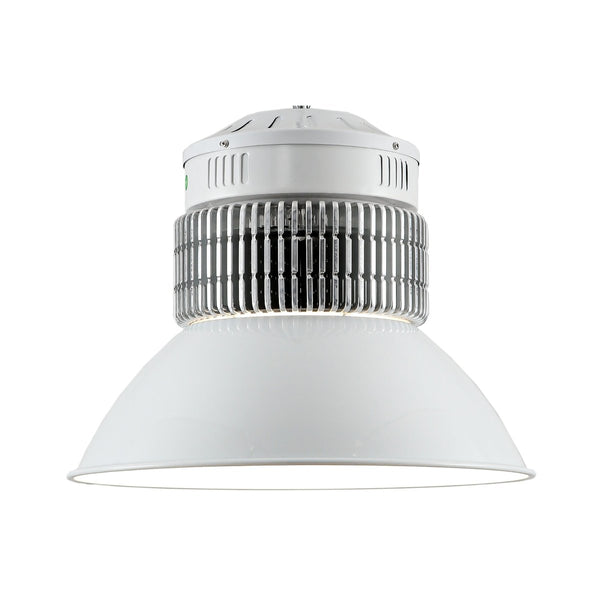

LED Radiator Highbay 200W Cool White 4000K IP20
£152.09
£194.70
Product Overview
This high-bay LED radiator light is perfect for brightening up large spaces. It’s highly efficient (128lm/W) and has a long lifespan of 60,000 hours, so you can enjoy better value for money. You can also dim it to create just the right ambience. Plus, it comes with a 5-year warranty, giving you extra peace of mind.
Key details at a glance:
- Dimensions: 260mm (D) x 275mm (H) - Body; 485mm (D) x 420mm (H) - Whole item
- Wattage: 200W
- Light temperature: 4000K (cool white)
- Lifespan: 60,000 hours
- Dimmable: Yes
Perfect for:

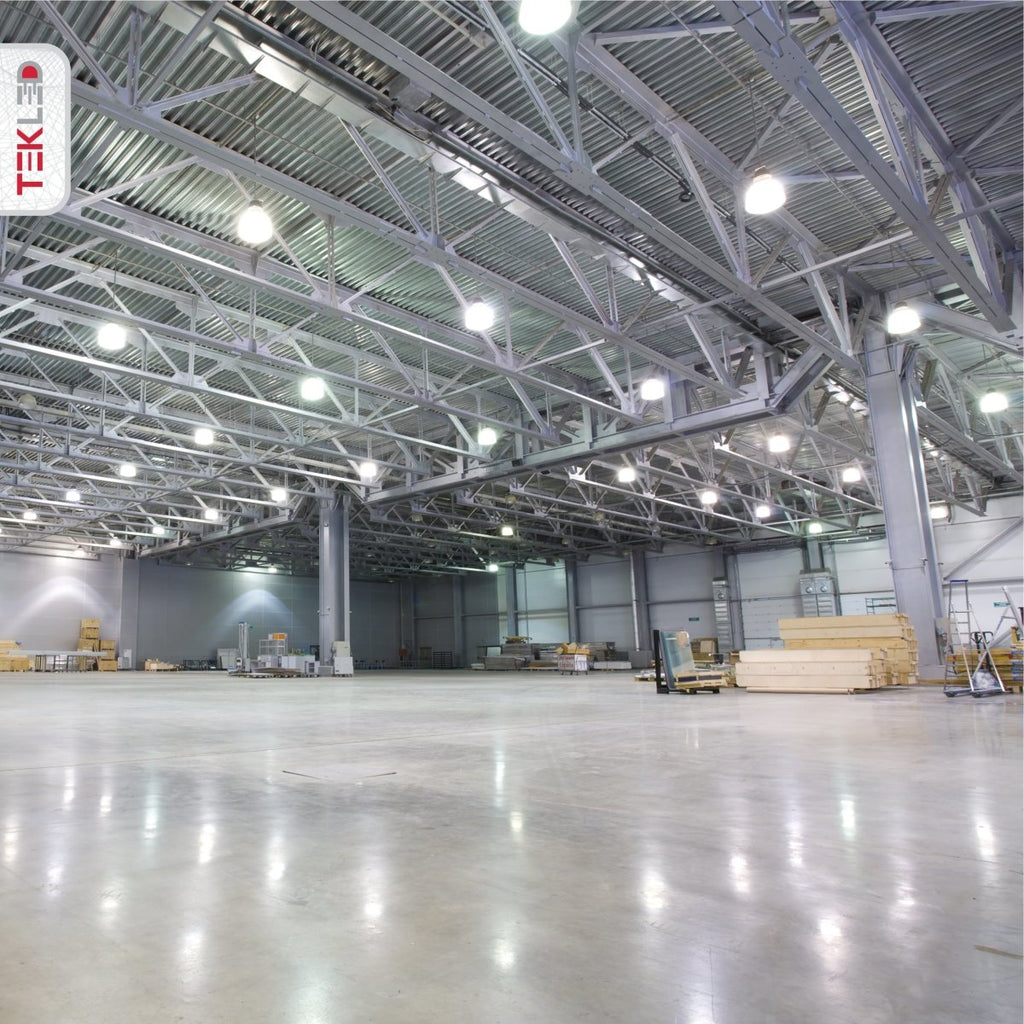

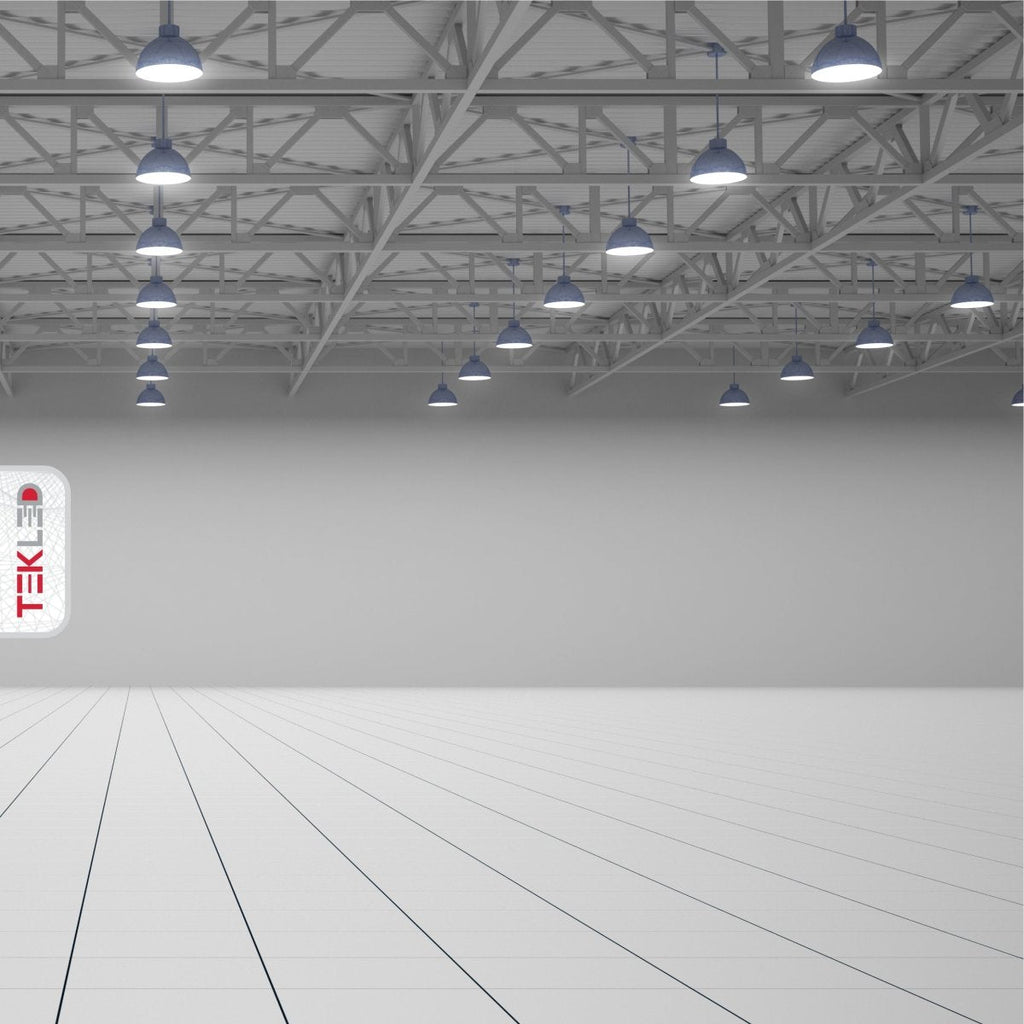

- Warehouses: Bright, consistent light for improved visibility and safety
- Factories: Efficient and long-lasting lighting for industrial settings
- Retail spaces: Enhanced illumination to showcase products and create a welcoming atmosphere

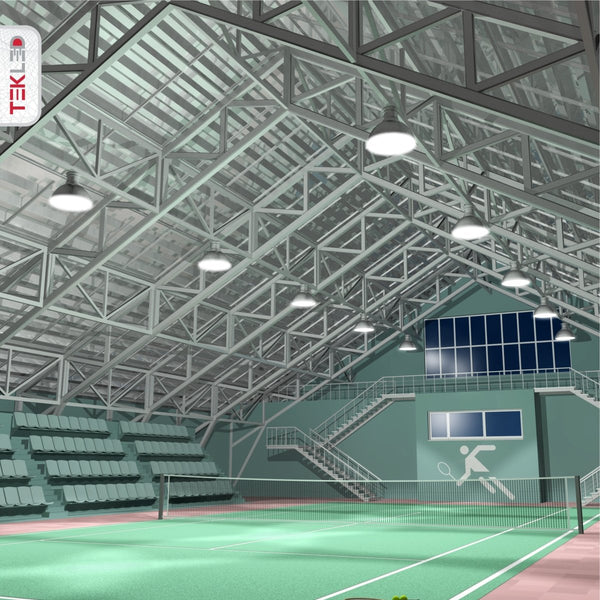

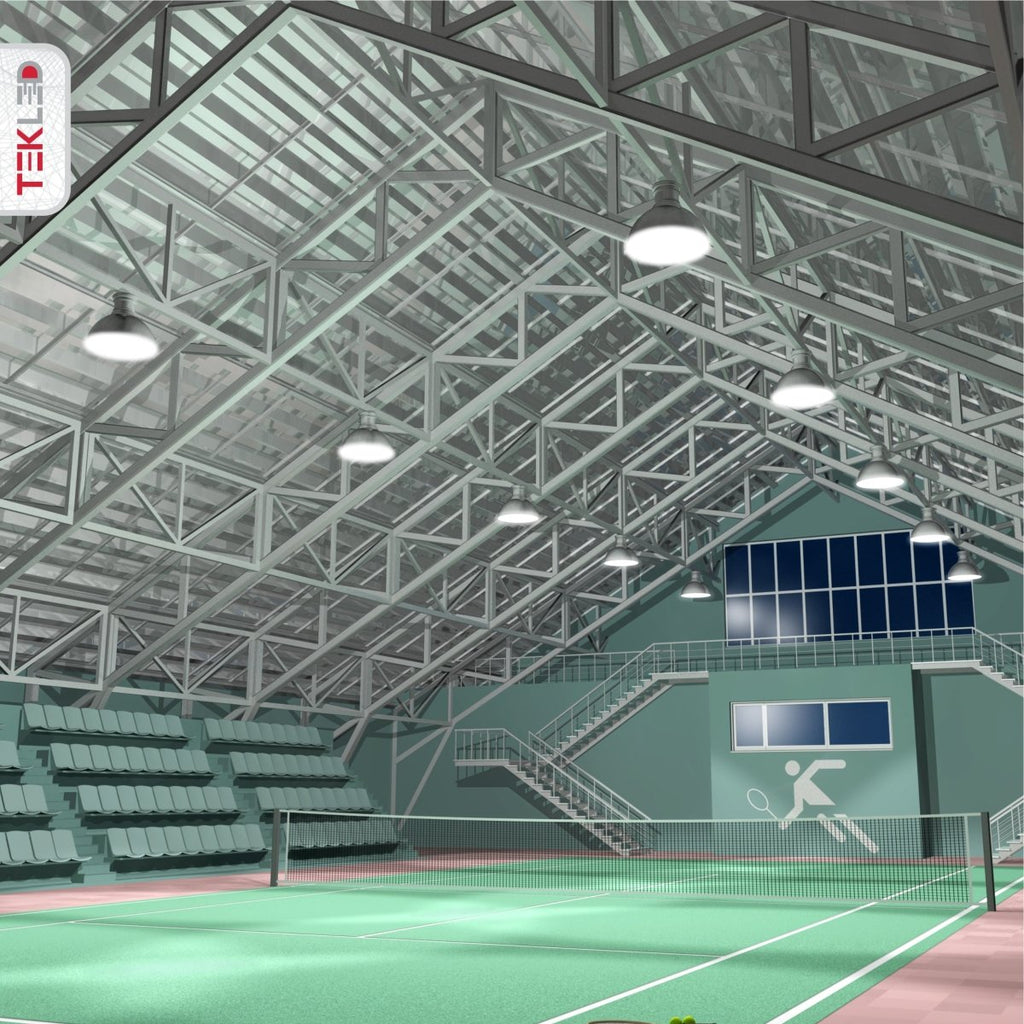

- Sports halls: Powerful lighting for indoor sports and activities
For more details, see the full technical specifications on the corresponding tab.
Technical Specifications
| Name | LED Radiator Highbay 200W Cool White 4000K IP20 |
| Product Code | 230-03568 |
| Power | 185W |
| Power Source | Hardwired |
| Voltage | 220/240V AC 50/60Hz |
| Lamp Holder Type | Built-in LED |
| Protection Class | Class I |
| Dimmability | Dimmable |

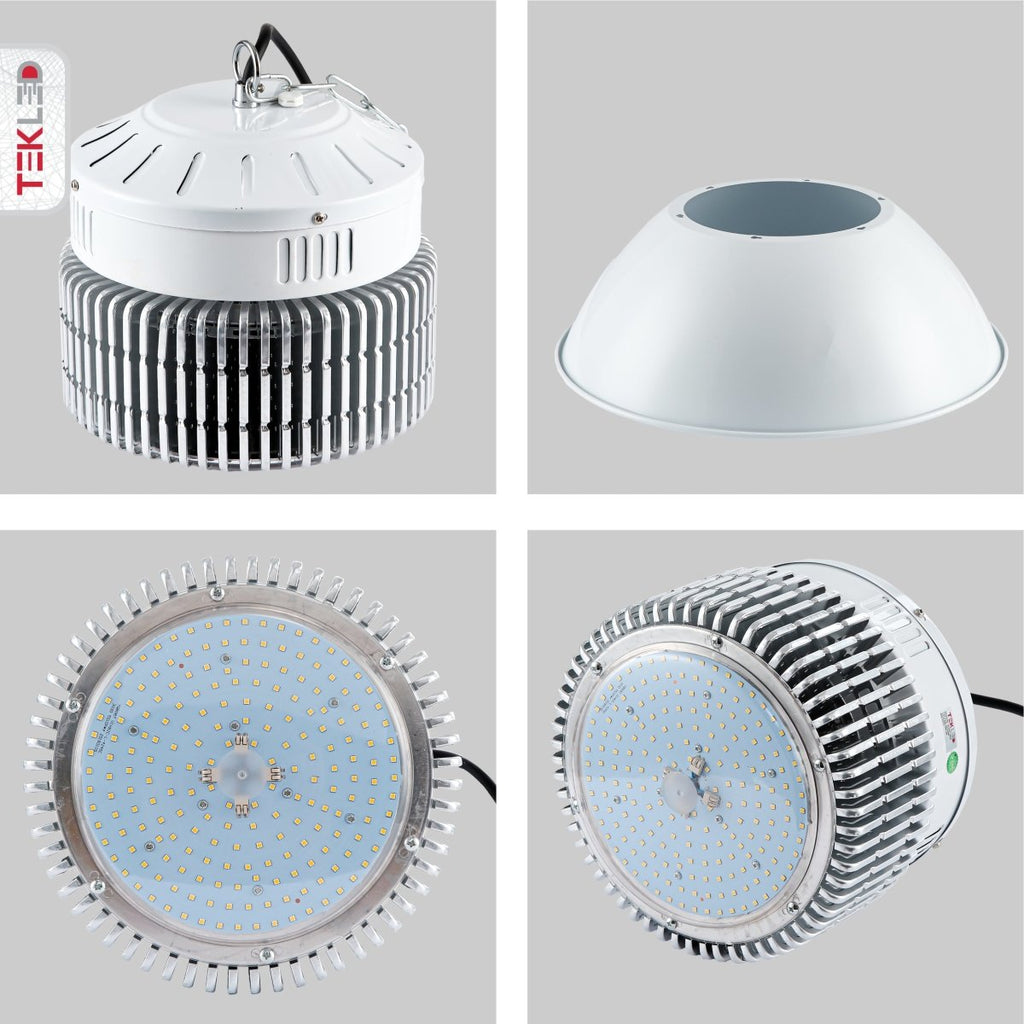

| Light Source | SMD 3030 LED |
| Led Quantity | 10P5S*4 200 PCS |
| Bulbs | Integrated LED, no need additional bulb |
| Lumen | 23100lm |
| Luminous Efficacy | 128lm/W |
| Lux | avg 140Lux @6m height 12m diamter, max 330Lux |
| CRI | CRI>70 |
| CCT (Kelvin) Light Colour | 4000K Cool White |
| Flickering | Flicker-free |
| IP Class | IP20 |
| Mount Type | Suspended |
| Function Mode | 1-5V, 1-10V, PWM, Multiple Timers |

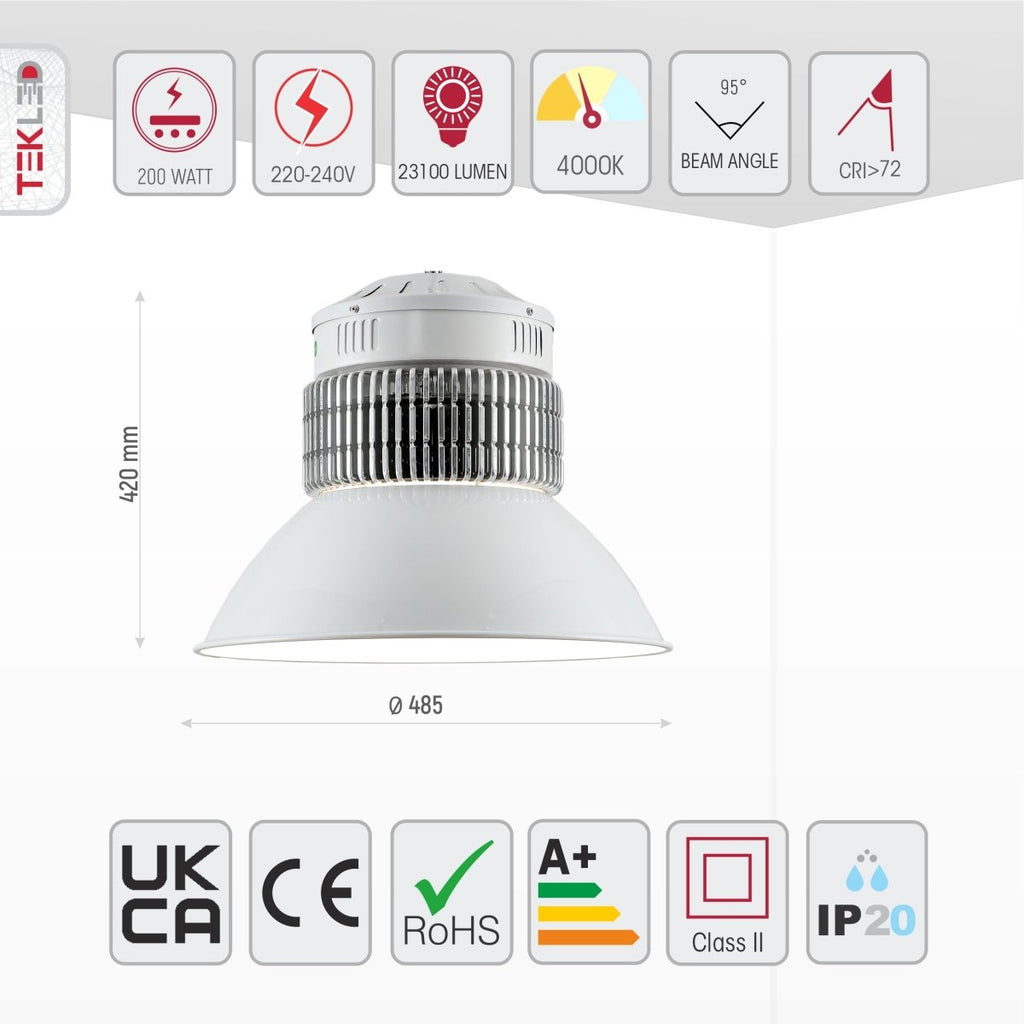

| Product Dimensions (LxWxH) (DxH) | body D260x275mm whole item D485x420mm |
| Power Cord Length | 500mm |
| Made Of Materials | Aluminium, Steel, Polycarbonate |
| Product Colour | White |
| Paint Type | Spray Painted |

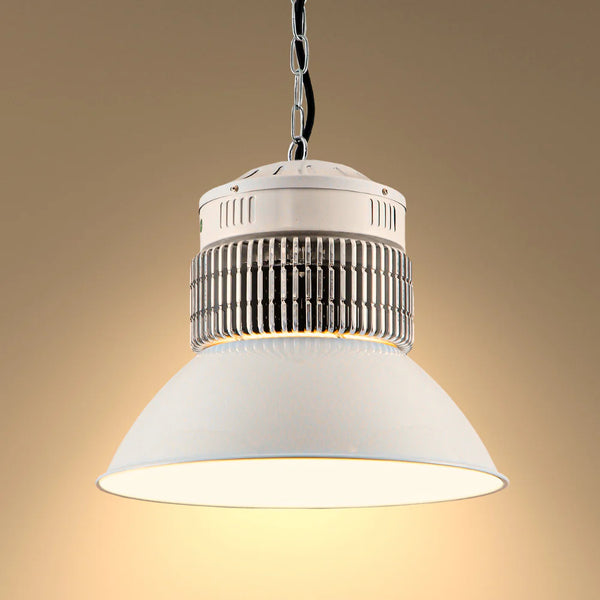

| Suspension Type | Chain |
| Suspension Length | 250mm |
| Optic Type | Reflector |
| Driver Brand | Inventronics EUM-200S560DG |
| Driver Type | Constant Current Driver |
| Driver Power | 200W |
| Driver Input Voltage | 90~305 V AC / 127~300 V DC 50/60Hz |
| Driver Output Voltage | 18-54V DC |
| Driver Output Current | 5600mA |
| Efficiency | 0.915 |
| Surge Protection Level | 6kV |
| Power Factor | pf>0.95 |
| Control | 1-5V, 1-10V, PWM, Multiple Timers |
| Operating Temperature (C) | -40/+60C |
| New Energy Rating | E |
| Energy Rating Range | A-G |
| Warranty | 5 year |
| Life Span | 60000h |
| Net Weight | 3.22kg |
| Gross Weight | 3.6kg |
| Box Dimension (LxWxH) | 270x270x315mm |

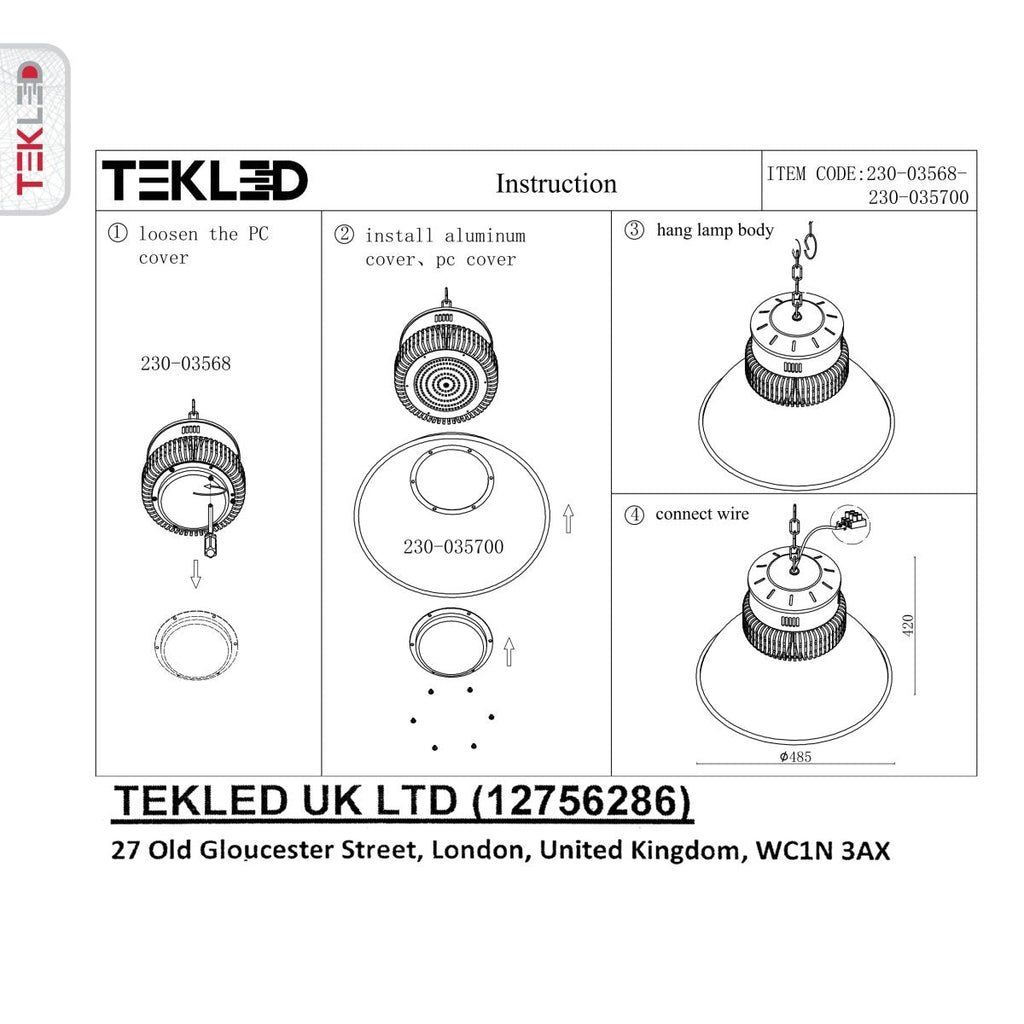

| Box Content | 1 pc Lamp Body, 1 pc Instruction |
| Pieces/Box | 1 |
| Certifications | UKCA, CE (LVD, EMC) |
