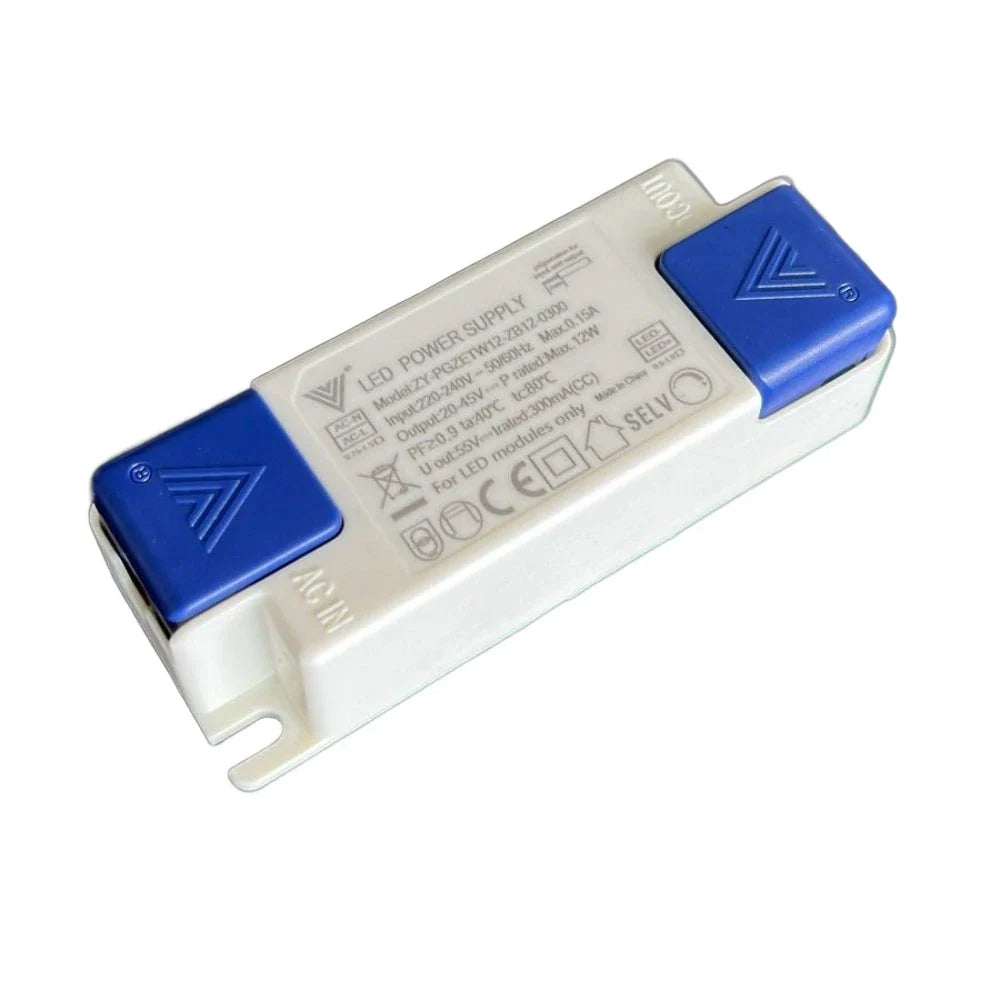

ZenYuan Trailing and Leading Edge Dimmable LED Driver 20-45V 150-300mA 12W
£8.12
£10.73
Product Overview
This dimmable LED driver gives you greater control over your lights, letting you set the perfect brightness level for any occasion. It's compatible with both leading and trailing edge dimmers, and is flicker-free. Easy to install and built to last.
Key details at a glance:
- Dimensions: 96mm (L) x 36mm (W) x 24mm (H)
- Power: 12W
- Input voltage: 220-240V AC 50/60Hz
- Output voltage: 20-45V DC
- Dimming: Leading and trailing edge
For more details, see the full technical specifications on the corresponding tab.
Technical Specifications
| Name | ZenYuan Trailing and Leading Edge Dimmable LED Driver 20-45V 150-300mA 12W Flicker Free |
| Product Code | 890-159471 |
| Power | 12W |
| Power Source | Hardwired |
| Voltage | 220/240V AC 50/60Hz |
| Protection Class | Class II |
| Function Mode | Leading and trailing edge Dimming via wall dimmers, Flicker Free |
| Dimming | via LED wall dimmer switch |
| Product Dimensions (LxWxH) (DxH) | 96x36x24mm |
| Made Of Materials | Plastic Case |
| Product Colour | White, Blue |
| Driver Brand | Zenyuan |
| Driver Input Voltage | 220-240V AC 50/60Hz |
| Driver Output Voltage | 20-45V DC |
| Driver Output Current | 300mA |
| Surge Protection Level | 2.5kV |
| Power Factor | pf>0.9 |
| Operating Temperature (C) | -20/+50C |
| Warranty | 3 year |
| Life Span | 30000h |
| Net Weight | 0.15kg |
| Gross Weight | 0.20kg |
| Box Dimension (LxWxH) | 120x40x30mm |
| Box Content | 1 pc LED Driver |
| Pieces/Box | 1 |
| Certifications | CE, UKCA, SELV |
